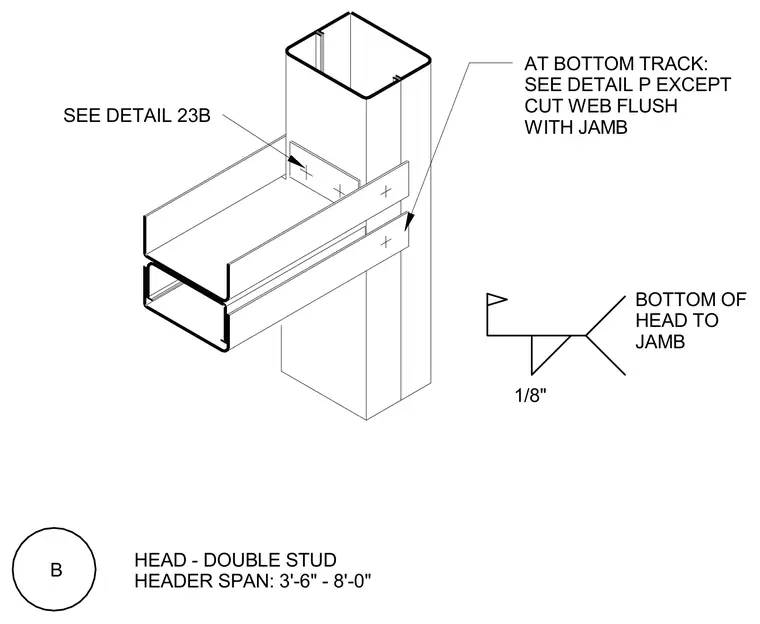

A double stud header framing connects to a vertical jamb stud with a one-eighth-inch clearance gap at the bottom of the head. The web is cut flush with the jamb at the bottom track per Detail P. A weld symbol specifies a one-eighth-inch fillet weld at the bottom of the head to the jamb.
SEE DETAIL 23B AT BOTTOM TRACK: SEE DETAIL P EXCEPT CUT WEB FLUSH WITH JAMB BOTTOM OF HEAD TO JAMB 1/8" B HEAD - DOUBLE STUD HEADER SPAN: 3'-6" - 8'-0"
