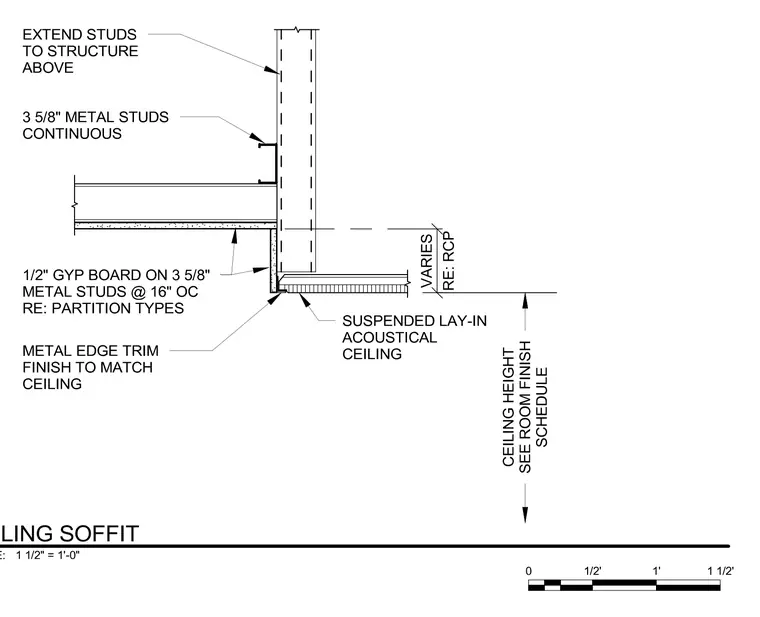

Continuous 3-5/8 inch metal studs extend upward to structure above for full-height wall framing. A suspended lay-in acoustical ceiling system terminates at the partition with a metal edge trim matching the ceiling finish. A drop soffit finished with 1/2 inch gypsum board on 3-5/8 inch metal studs spaced at 16 inches on center transitions the ceiling height, with exact dimensions and ceiling heights coordinated per reflected ceiling plan and room finish schedule.
