A two-hour rated partition meets a non-rated or one-hour rated partition at a corner intersection. Joints are finished with tape and joint compound across the wall assembly matching UL design U419. Gypsum board finishes the wall surfaces on steel stud framing with cavity insulation.

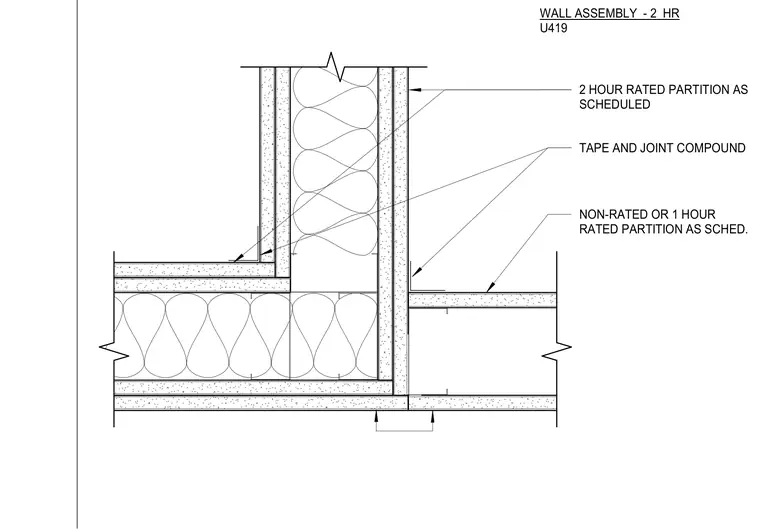

2 HOUR RATED PARTITION AS SCHEDULED NON-RATED OR 1 HOUR RATED PARTITION AS SCHED. TAPE AND JOINT COMPOUND WALL ASSEMBLY - 2 HR U419
