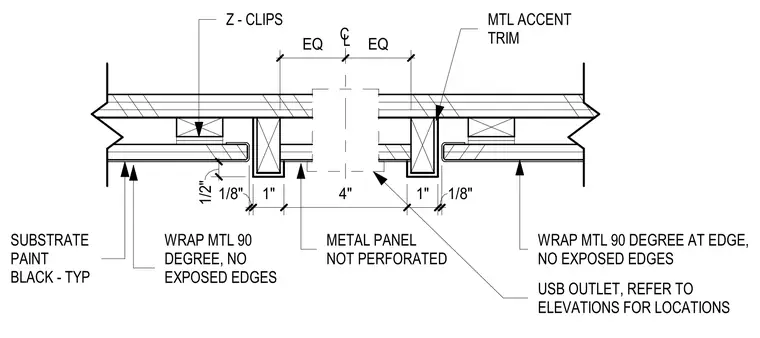

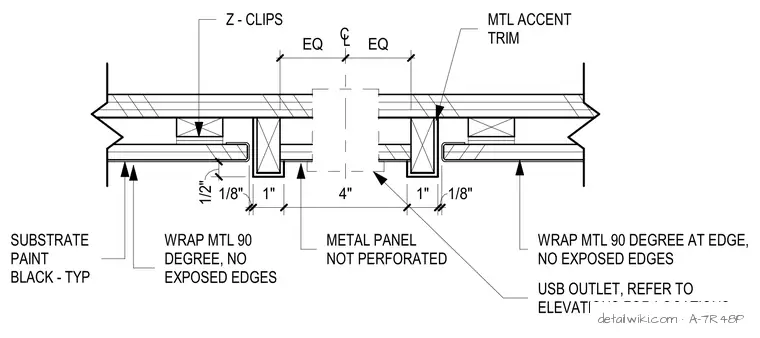

Metal panels mount to a substrate using Z-clips, maintaining a 1/8-inch gap between the panel edge and the central metal accent trim. Metal panels wrap 90 degrees at the edges to conceal all exposed edges. The accent trim forms a 4-inch wide central channel to accommodate a USB outlet as indicated on the elevations. The substrate features a black paint finish, and metal panels are non-perforated.
