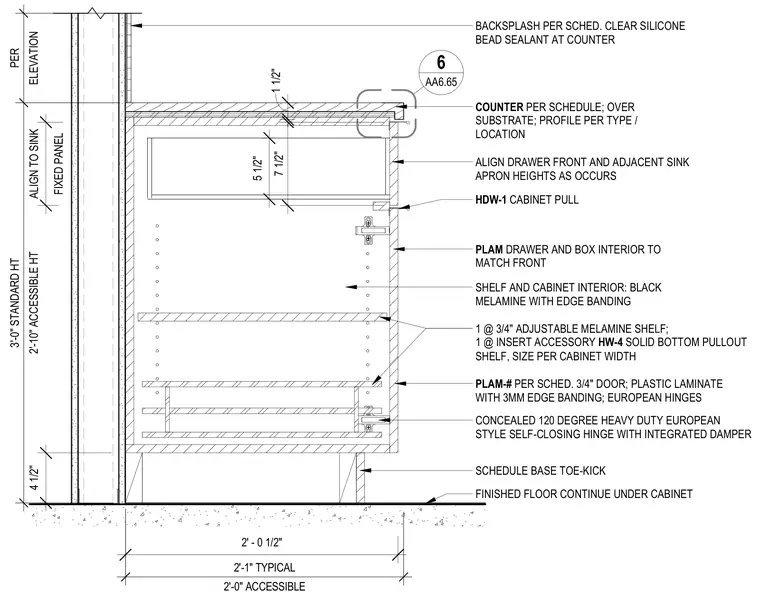

This interior millwork detail shows a base cabinet assembly anchored above a finished floor that continues beneath the unit. The casework features a plastic laminate countertop over a substrate with a profiled edge and a clear silicone sealant bead at the backsplash. The upper drawer and main cabinet interior use black melamine with edge banding, equipped with heavy-duty concealed 120-degree European-style self-closing hinges with integrated dampers, cabinet pulls, and a pullout accessory shelf. The cabinet includes a standard or accessible height configuration with adjustable melamine shelving and a toe-kick base.
AA6.65 6 SHELF AND CABINET INTERIOR: BLACK MELAMINE WITH EDGE BANDING HDW-1 CABINET PULL PLAM DRAWER AND BOX INTERIOR TO MATCH FRONT ELEVATION PER 2'-10" ACCESSIBLE HT 3'-0" STANDARD HT ALIGN DRAWER FRONT AND ADJACENT SINK APRON HEIGHTS AS OCCURS 7 1/2" 2'-0" ACCESSIBLE 2'-1" TYPICAL 2' - 0 1/2" PLAM-# PER SCHED. 3/4" DOOR; PLASTIC LAMINATE WITH 3MM EDGE BANDING; EUROPEAN HINGES 1 1/2" FINISHED FLOOR CONTINUE UNDER CABINET SCHEDULE BASE TOE-KICK 1 @ 3/4" ADJUSTABLE MELAMINE SHELF; 1 @ INSERT ACCESSORY HW-4 SOLID BOTTOM PULLOUT SHELF, SIZE PER CABINET WIDTH CONCEALED 120 DEGREE HEAVY DUTY EUROPEAN STYLE SELF-CLOSING HINGE WITH INTEGRATED DAMPER 4 1/2" 5 1/2" BACKSPLASH PER SCHED. CLEAR SILICONE BEAD SEALANT AT COUNTER COUNTER PER SCHEDULE; OVER SUBSTRATE; PROFILE PER TYPE / LOCATION FIXED PANEL ALIGN TO SINK
