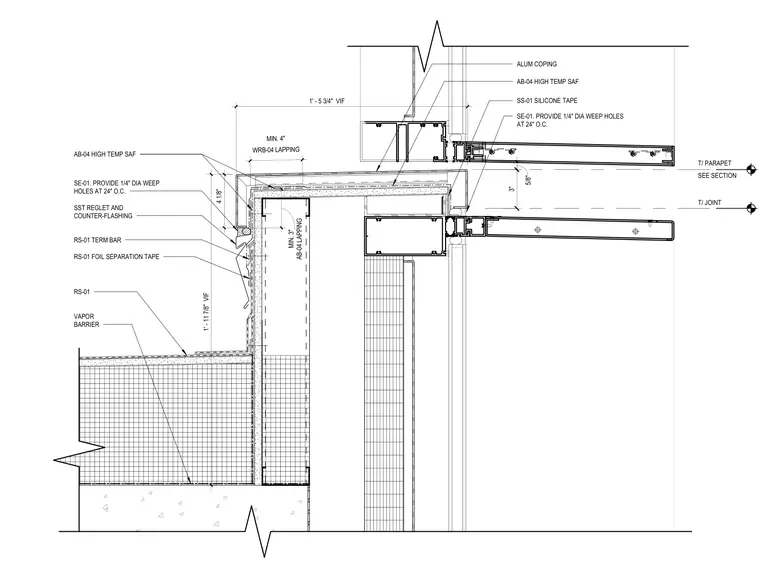

An aluminum coping caps the parapet wall, seated over high temperature self-adhering flashing and foil separation tape. A stainless steel reglet and counter-flashing integrate with the water-resistive barrier, which laps a minimum of four inches. Silicone tape and weep holes of one-quarter inch diameter at twenty-four inches on center provide drainage at the mechanical screen connection. A termination bar secures the vapor barrier and membrane layers along the vertical face.
T/ PARAPET T/ JOINT 3" RS-01 RS-01 FOIL SEPARATION TAPE AB-04 HIGH TEMP SAF SST REGLET AND COUNTER-FLASHING SE-01. PROVIDE 1/4" DIA WEEP HOLES AT 24" O.C. WRB-04 LAPPING MIN. 4" AB-04 LAPPING MIN. 3" SS-01 SILICONE TAPE SE-01. PROVIDE 1/4" DIA WEEP HOLES AT 24" O.C. RS-01 TERM BAR VAPOR BARRIER AB-04 HIGH TEMP SAF 4 1/8" 1' - 5 3/4" VIF 1' - 11 7/8" VIF ALUM COPING SEE SECTION 5/8"
