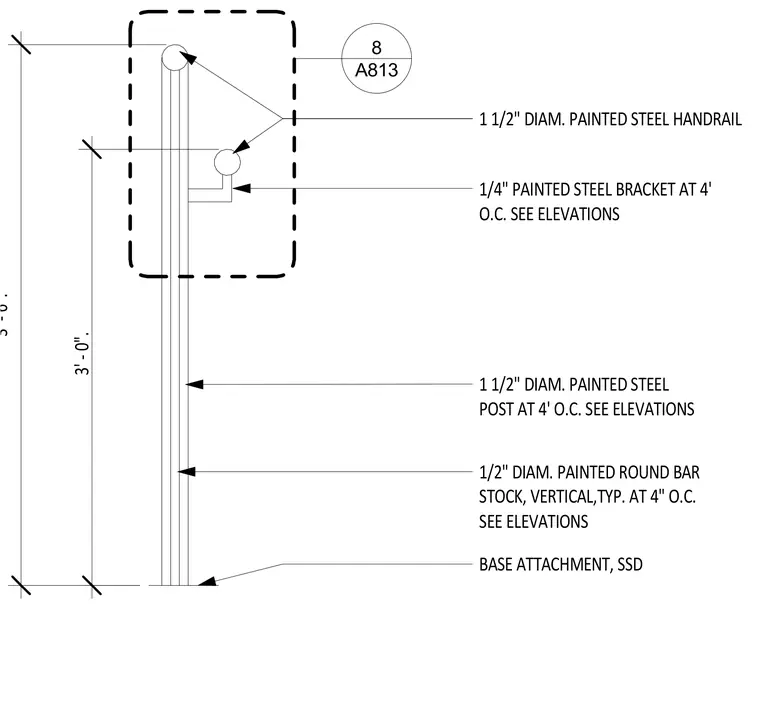

A painted steel stair guardrail assembly features a 1 1/2-inch diameter painted steel handrail supported by 1/4-inch painted steel brackets spaced at 4 feet on center. Vertical posts consist of 1 1/2-inch diameter painted steel spaced at 4 feet on center. Infill is provided by 1/2-inch diameter painted round bar stock oriented vertically and typically spaced at 4 inches on center. The assembly is secured at the base with a structural steel attachment.
3' - 6". 3' - 0". 1 1/2" DIAM. PAINTED STEEL HANDRAIL 1/4" PAINTED STEEL BRACKET AT 4' O.C. SEE ELEVATIONS 1 1/2" DIAM. PAINTED STEEL POST AT 4' O.C. SEE ELEVATIONS BASE ATTACHMENT, SSD 1/2" DIAM. PAINTED ROUND BAR STOCK, VERTICAL,TYP. AT 4" O.C. SEE ELEVATIONS A813 8
