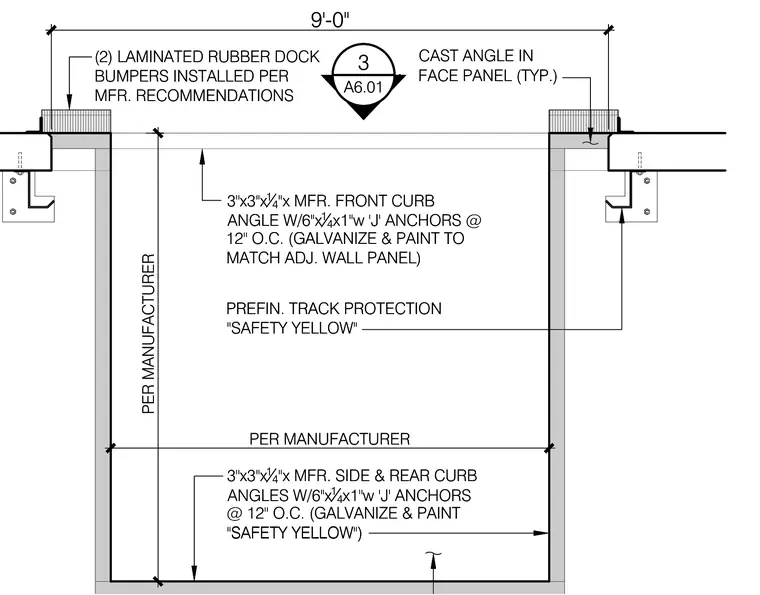

Loading dock pit assembly with embedded structural steel curb angles and protective elements. A 3-inch by 3-inch by 1/4-inch manufacturer front curb angle is secured with 6-inch by 1/4-inch by 1-inch J-anchors spaced at 12 inches on center, finished with galvanizing and paint to match the adjacent wall panel. Side and rear curb angles of the same dimensions are anchored similarly and finished in safety yellow. Prefinished track protection finished in safety yellow is integrated into the pit sides. Two laminated rubber dock bumpers are installed per manufacturer recommendations at the top face, and cast angles are embedded in the face panel.
(2) LAMINATED RUBBER DOCK BUMPERS INSTALLED PER MFR. RECOMMENDATIONS 3"x3"x 14 "x MFR. FRONT CURB ANGLE W/6"x 14 x1"w 'J' ANCHORS @ 12" O.C. (GALVANIZE & PAINT TO MATCH ADJ. WALL PANEL) 9'-0" PER MANUFACTURER PER MANUFACTURER 3"x3"x 14 "x MFR. SIDE & REAR CURB ANGLES W/6"x 14 x1"w 'J' ANCHORS @ 12" O.C. (GALVANIZE & PAINT "SAFETY YELLOW") CAST ANGLE IN FACE PANEL (TYP.) PREFIN. TRACK PROTECTION "SAFETY YELLOW" 3 A6.01 (2) LAMINATED RUBBER DOCK BUMPERS INSTALLED PER MFR. RECOMMENDATIONS 3"x3"x 14 "x MFR. FRONT CURB ANGLE W/6"x 14 x1"w 'J' ANCHORS @ 12" O.C. (GALVANIZE & PAINT TO MATCH ADJ. WALL PANEL) 9'-0" PER MANUFACTURER PER MANUFACTURER 3"x3"x 14 "x MFR. SIDE & REAR CURB ANGLES W/6"x 14 x1"w 'J' ANCHORS @ 12" O.C. (GALVANIZE & PAINT "SAFETY YELLOW") CAST ANGLE IN FACE PANEL (TYP.) PREFIN. TRACK PROTECTION "SAFETY YELLOW" 3 A6.01
