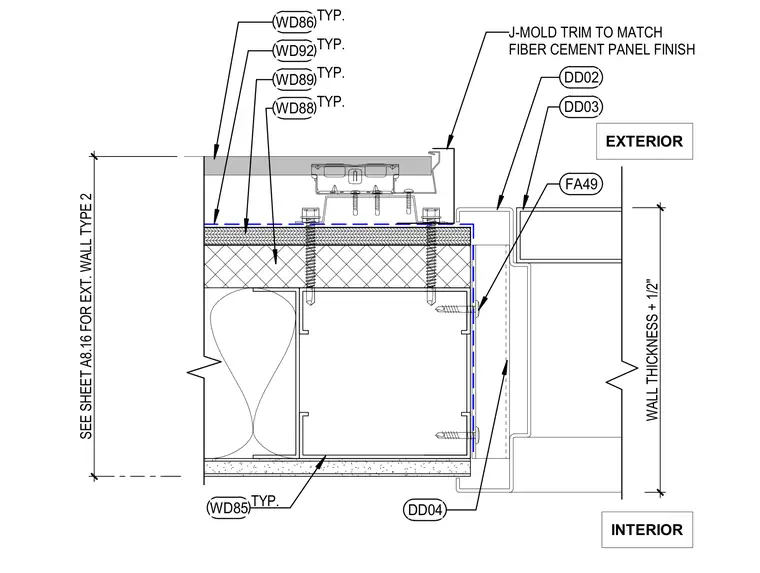

An exterior door frame assembly integrates with a framed wall construction clad in fiber cement panels. A J-mold trim matches the exterior fiber cement panel finish. Fasteners secure the frame components and sheathing layers to the structural framing behind the wall finish.
EXTERIOR INTERIOR WALL THICKNESS + 1/2" TYP. WD89 TYP. WD92 TYP. WD88 TYP. WD85 DD04 DD02 DD03 TYP. WD86 J-MOLD TRIM TO MATCH FIBER CEMENT PANEL FINISH SEE SHEET A8.16 FOR EXT. WALL TYPE 2 FA49
