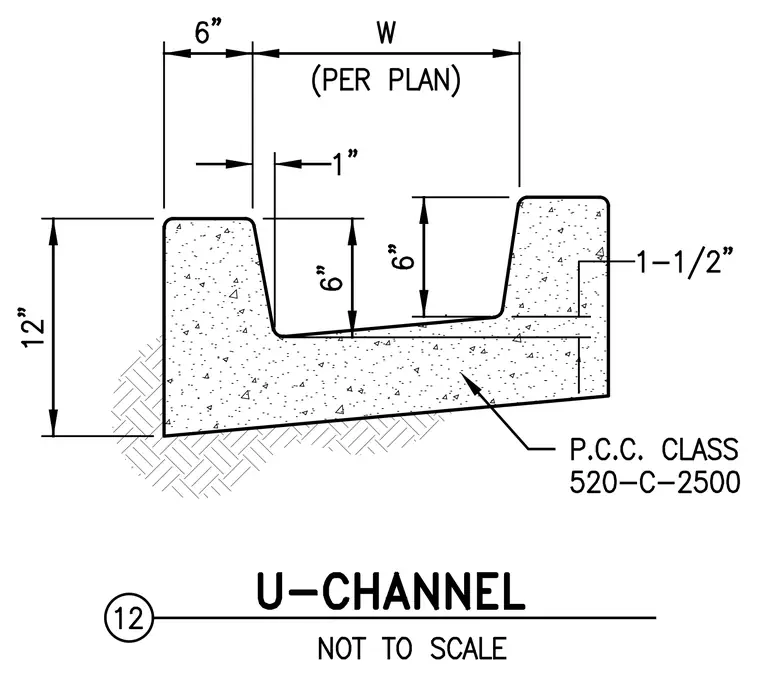

This cast-in-place Portland cement concrete U-channel features a class 520-C-2500 mix resting on compacted subgrade. The overall depth measures twelve inches with a variable channel width dimensioned per plan. The internal trough has a six-inch depth with side wall thicknesses of six inches and one-and-one-half inches respectively. A one-inch setback and six-inch top dimension define the outer configuration.
