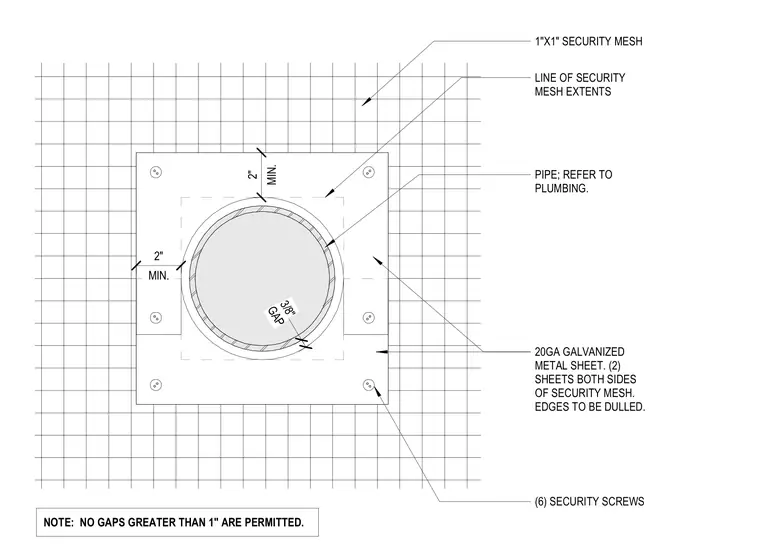

This assembly consists of a pipe penetrating a one-inch by one-inch security mesh partition. The penetration is reinforced on both sides of the mesh by twenty-gauge galvanized metal sheets, which are secured using six security screws. The edges of the metal sheets are to be dulled to prevent injury. A three-eighths-inch gap is maintained between the pipe and the surrounding assembly, with a minimum two-inch clearance provided around the pipe perimeter. All gaps must remain one inch or less to maintain security requirements.
Text on the drawing
20GA GALVANIZED METAL SHEET. (2) SHEETS BOTH SIDES OF SECURITY MESH. EDGES TO BE DULLED. (6) SECURITY SCREWS PIPE; REFER TO PLUMBING. 1"X1" SECURITY MESH LINE OF SECURITY MESH EXTENTS GAP 3/8" NOTE: NO GAPS GREATER THAN 1" ARE PERMITTED. MIN. 2" MIN. 2"
