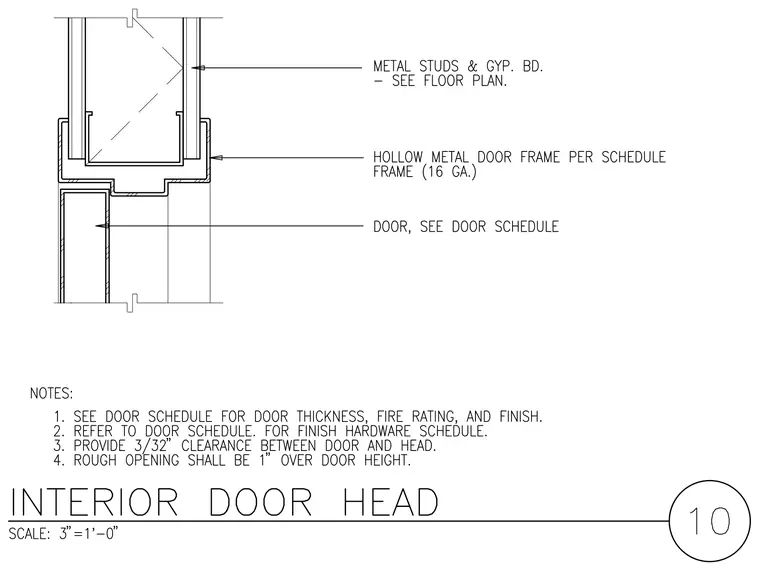

An interior hollow metal door frame constructed from 16-gauge material is anchored to a standard metal stud and gypsum board partition wall. The door leaf seats within the frame rebate with a specified clearance at the head. Wall framing dimensions and stud layouts are coordinated per the architectural floor plans. Door thickness, fire rating, and finish hardware requirements reference the project door schedule.
