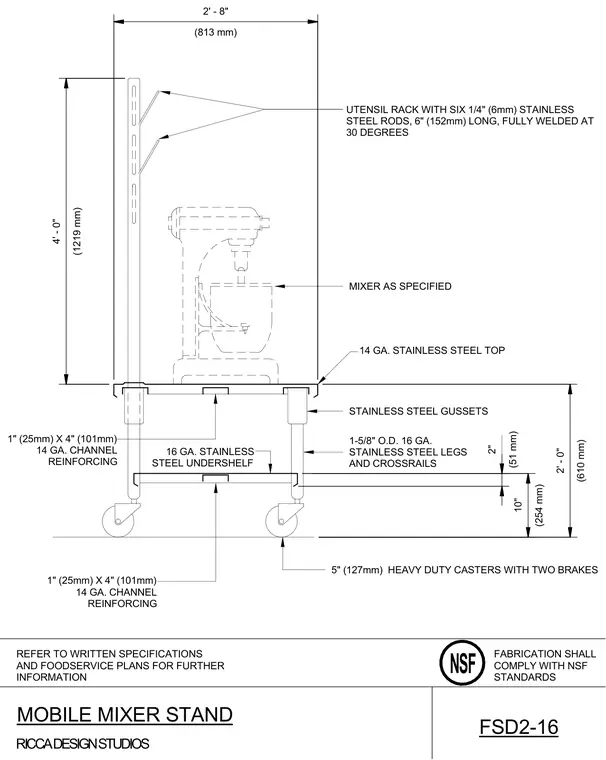

A mobile mixer stand is fabricated from stainless steel components in compliance with NSF standards. The assembly features a fourteen-gauge stainless steel top reinforced underneath with one-inch by four-inch fourteen-gauge channels, supported by sixteen-gauge stainless steel legs and crossrails connected with stainless steel gussets. An undershelf of sixteen-gauge stainless steel includes matching fourteen-gauge channel reinforcing. The stand moves on five-inch heavy-duty casters equipped with two brakes. A utensil rack constructed with six quarter-inch stainless steel rods, six inches long and fully welded at thirty degrees, extends upward from the rear of the stand.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF MIXER AS SPECIFIED 14 GA. STAINLESS STEEL TOP STAINLESS STEEL GUSSETS 1-5/8" O.D. 16 GA. STAINLESS STEEL LEGS AND CROSSRAILS 16 GA. STAINLESS STEEL UNDERSHELF 1" (25mm) X 4" (101mm) 14 GA. CHANNEL REINFORCING 1" (25mm) X 4" (101mm) 14 GA. CHANNEL REINFORCING 5" (127mm) HEAVY DUTY CASTERS WITH TWO BRAKES UTENSIL RACK WITH SIX 1/4" (6mm) STAINLESS STEEL RODS, 6" (152mm) LONG, FULLY WELDED AT 30 DEGREES (254 mm) 10" (610 mm) 2' - 0" (813 mm) 2' - 8" (1219 mm) 4' - 0" (51 mm) 2" MOBILE MIXER STAND FSD2-16
