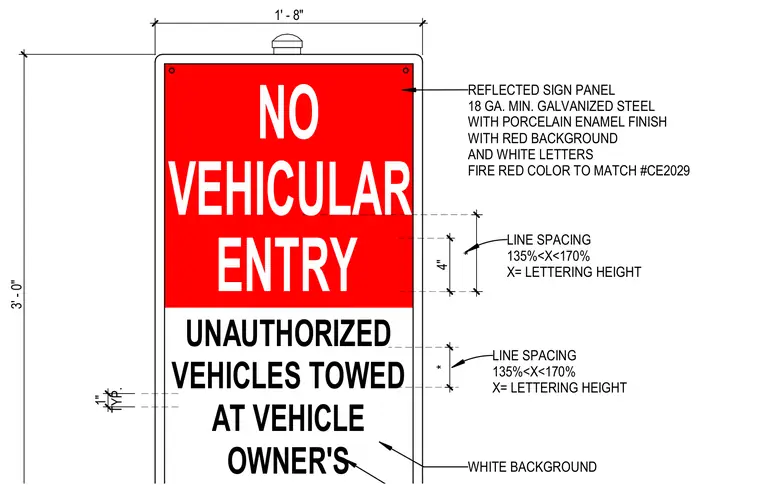

A traffic and parking warning sign panel measures one foot eight inches wide by three feet high. The reflected sign panel consists of an eighteen gauge minimum galvanized steel plate finished with porcelain enamel. The top section features a red background with white letters reading NO VEHICULAR ENTRY in fire red color matching #CE2029. The bottom section has a white background with black lettering reading UNAUTHORIZED VEHICLES TOWED AT VEHICLE OWNER'S. Specific typography guidelines dictate a four inch line spacing and line spacing between 135% and 170% of the lettering height.
UNAUTHORIZED VEHICLES TOWED AT VEHICLE OWNER'S 1' - 8" 3' - 0" WHITE BACKGROUND REFLECTED SIGN PANEL 18 GA. MIN. GALVANIZED STEEL WITH PORCELAIN ENAMEL FINISH WITH RED BACKGROUND AND WHITE LETTERS FIRE RED COLOR TO MATCH #CE2029 TYP. 1" NO VEHICULAR ENTRY 4" * LINE SPACING 135%<X<170% X= LETTERING HEIGHT * LINE SPACING 135%<X<170% X= LETTERING HEIGHT
