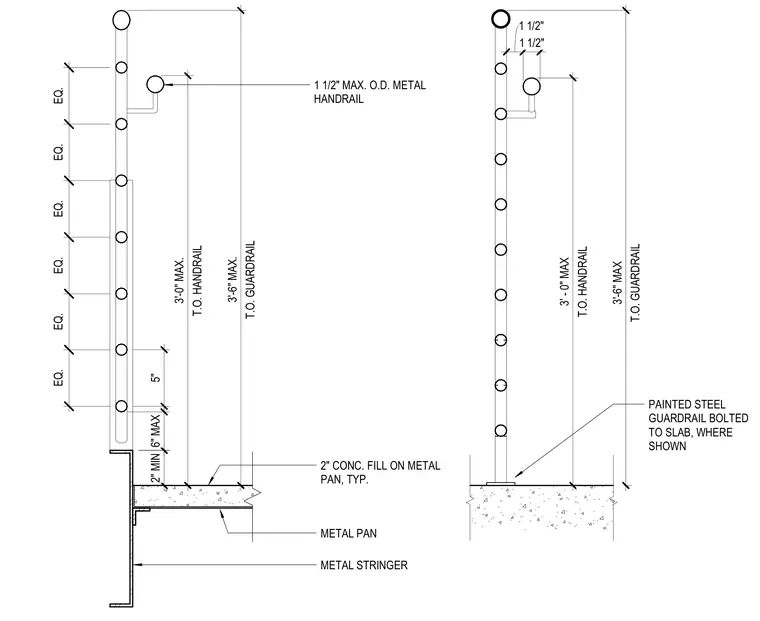

A painted steel guardrail is bolted to the slab where shown, featuring a 1 1/2 inch maximum outside diameter metal handrail. The handrail maintains a maximum height of 3 feet to the top of the handrail, while the guardrail extends to a maximum height of 3 feet 6 inches to the top of the guardrail. The assembly integrates with concrete fill on metal pan stairs supported by a metal stringer.
EQ. EQ. EQ. EQ. EQ. EQ. 5" 2" CONC. FILL ON METAL PAN, TYP. METAL PAN METAL STRINGER 1 1/2" MAX. O.D. METAL HANDRAIL T.O. HANDRAIL 3'-0" MAX. T.O. GUARDRAIL 3'-6" MAX. 2" MIN T.O. GUARDRAIL 3'-6" MAX T.O. HANDRAIL 3' - 0" MAX PAINTED STEEL GUARDRAIL BOLTED TO SLAB, WHERE SHOWN 6" MAX 1 1/2" 1 1/2"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
