A bolt-on recessed circular 360-degree rotating tie down is anchored to the floor adjacent to the line of witness stand casework. The unit is secured using three 3/8-inch stainless steel Powers flat head expansion anchors designed to provide a minimum 2000-pound pull-out force. Installation follows manufacturer recommendations, oriented in the direction of the judge's bench.

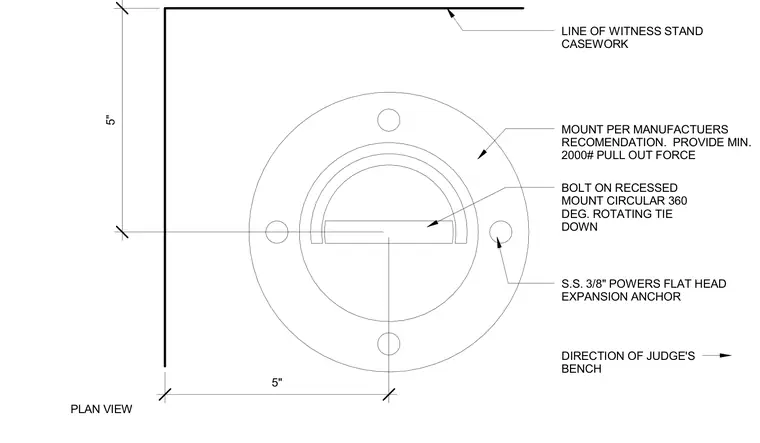

LINE OF WITNESS STAND CASEWORK S.S. 3/8" POWERS FLAT HEAD EXPANSION ANCHOR PLAN VIEW DIRECTION OF JUDGE'S BENCH BOLT ON RECESSED MOUNT CIRCULAR 360 DEG. ROTATING TIE DOWN 5" 5" MOUNT PER MANUFACTUERS RECOMENDATION. PROVIDE MIN. 2000# PULL OUT FORCE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
