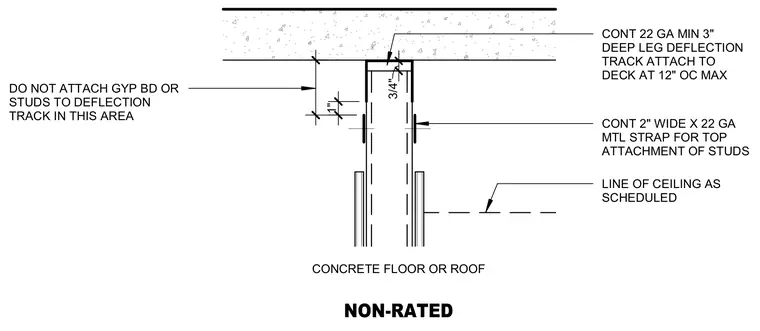

A continuous twenty-two gauge minimum three-inch deep leg deflection track secures to the underside of the non-rated concrete floor or roof at twelve inches on center maximum. Gypsum board and studs remain unattached to the deflection track within the specified deflection zone. A continuous two-inch wide by twenty-two gauge metal strap fastens the top attachment of the studs. The ceiling line terminates below the deflection zone per schedule.
1" 4 3/64" LINE OF CEILING AS SCHEDULED CONT 2" WIDE X 22 GA MTL STRAP FOR TOP ATTACHMENT OF STUDS CONT 22 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO DECK AT 12" OC MAX DO NOT ATTACH GYP BD OR STUDS TO DEFLECTION TRACK IN THIS AREA NON-RATED CONCRETE FLOOR OR ROOF 3/4"
