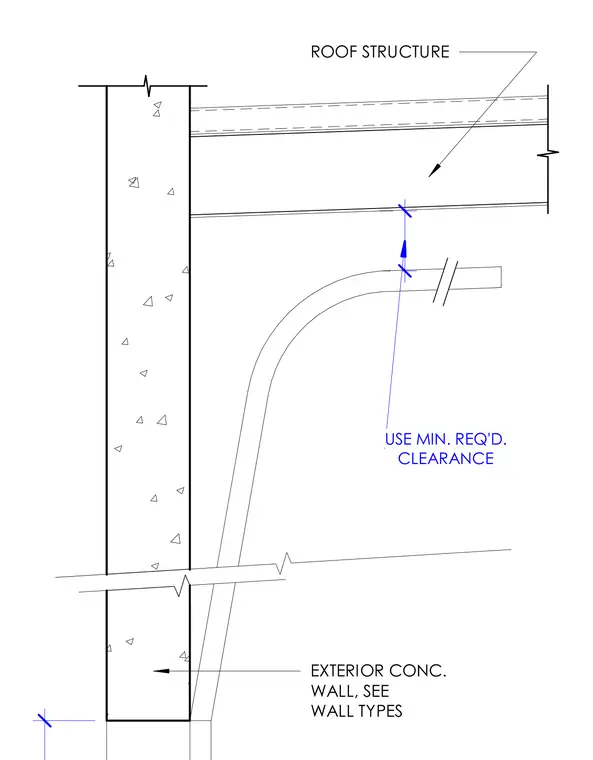

The assembly details the roof structure bearing against an exterior concrete wall, with wall types specified separately. A minimum required clearance is maintained below the roof framing to accommodate overhead clearances or equipment profiles.
ROOF STRUCTURE EXTERIOR CONC. WALL, SEE WALL TYPES USE MIN. REQ'D. CLEARANCE
