Architectural · A-7NYCG

Section Detail @ Cab Metal Panel

Materials

Steel Timber / Wood Stone Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

Beams Partitions Doors Facades / Cladding Railings / Guards Ceilings Floors / Slabs Insulation Entrances Connections / Plates

Connections

Bolted Connection

About this detail

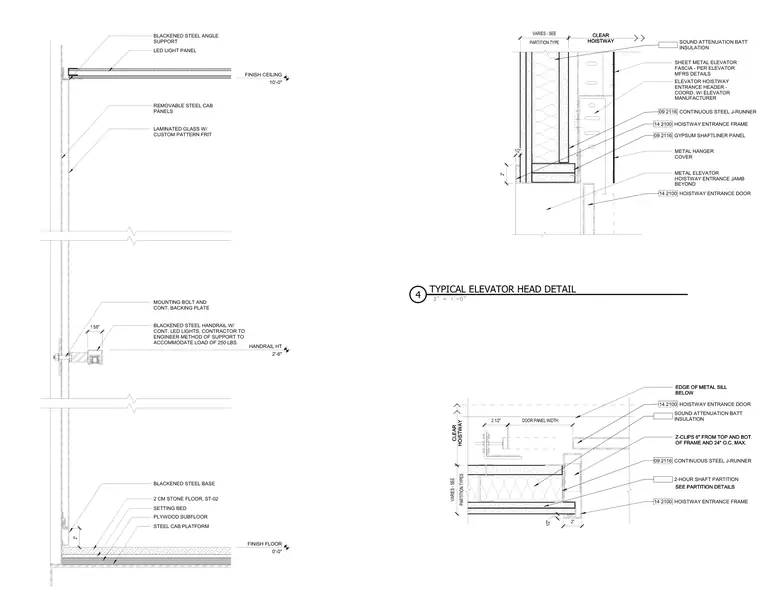

An elevator cab section and hoistway entrance head detail features a steel cab platform with plywood subfloor, setting bed, and two-centimeter stone floor with a two-inch blackened steel base, removable steel cab panels, laminated glass with custom pattern frit, and a blackened steel handrail with continuous LED lights and continuous backing plate secured with mounting bolts engineered for a two hundred fifty pound load. The ceiling incorporates a LED light panel supported by a blackened steel angle. The adjacent hoistway wall consists of a two-hour shaft partition with gypsum shaftliner panels, continuous steel j-runner, and sound attenuation batt insulation, interfacing with the hoistway entrance door, frame, header, and metal hanger cover coordinated with the elevator manufacturer.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
