Curtain Wall Stack Joint at Floor Slab and Steel Beam

Materials

Steel Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall

Elements

Columns Walls Curtain Walls Facades / Cladding Ceilings Floors / Slabs

About this detail

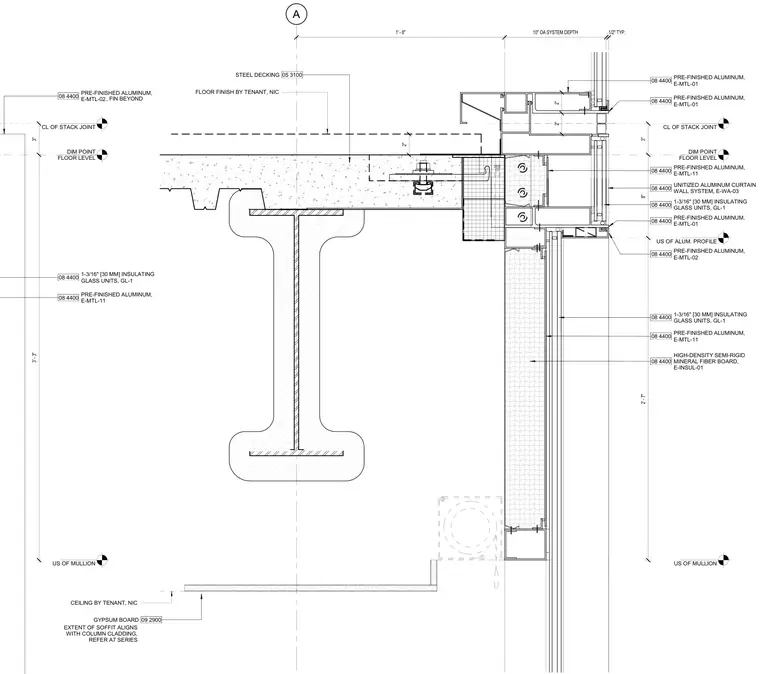

The vertical stack joint of a unitized aluminum curtain wall system intersects a concrete-filled steel decking floor slab supported by a wide-flange steel beam. The curtain wall incorporates 1-3/16-inch insulating glass units designated as GL-1, pre-finished aluminum profiles, and high-density semi-rigid mineral fiber board insulation. The assembly features dimension points for the floor level, underside of the mullion, and the centerline of the stack joint. Interior framing includes gypsum board ceilings and tenant floor finishes noted as not in contract.
