Architectural · A-7N48B

Chain Link Double Gate

Materials

Concrete Metal (misc.)

Elements

Columns Foundations / Footings Roof / Floor Openings

Connections

Welded Connection Bolted Connection

About this detail

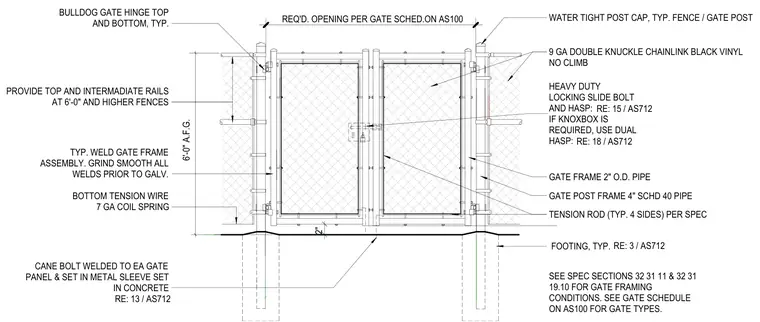

This elevation shows a chain link double gate assembly supported by four-inch schedule 40 pipe gate posts set in concrete footings with required pipe sizing per the gate schedule. The gate frame is constructed from two-inch outside diameter pipe with welded joints ground smooth prior to galvanizing, infilled with nine-gauge double knuckle black vinyl no-climb chain link fabric. Bulldog gate hinges are secured at the top and bottom of each panel, complemented by top and intermediate rails, tension rods on four sides, and a bottom tension wire with a seven-gauge coil spring. A heavy-duty locking slide bolt and hasp are provided at the center meeting point, along with a cane bolt welded to each gate panel and set into a metal sleeve embedded in concrete.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
