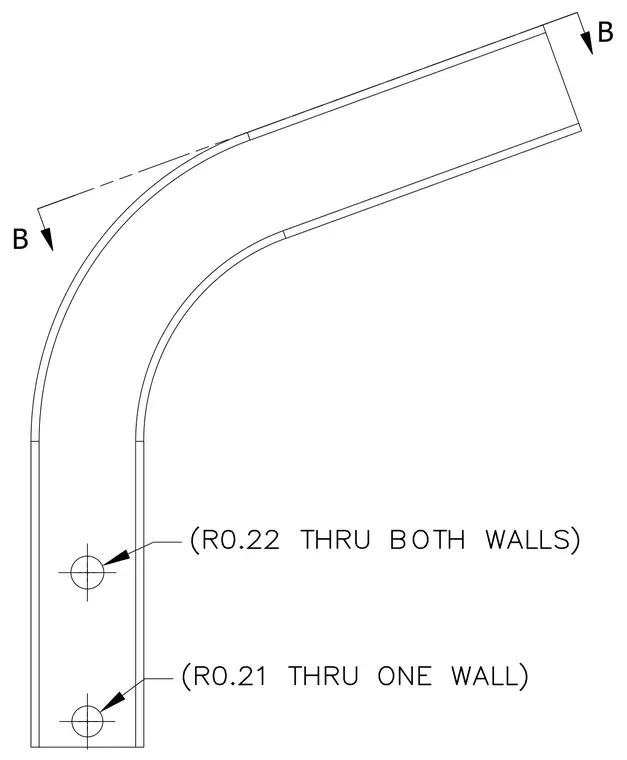

An end rail kick out tube features drilled holes through one wall and through both walls for mechanical fasteners. Section cuts B-B define the profile boundaries.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
