Reinforced membrane wraps continuously around curbs or forms from coated metal, secured with bonding adhesive and seam fastening plates over rigid insulation. Mechanical termination edges receive cut-edge sealant and metal counter flashing fastened twelve inches on center. Coping stone terminations feature water cut-off mastic and bonding adhesive beneath anchored stone caps. Cap flashing terminations integrate metal caps provided by others over the adhered membrane assembly.

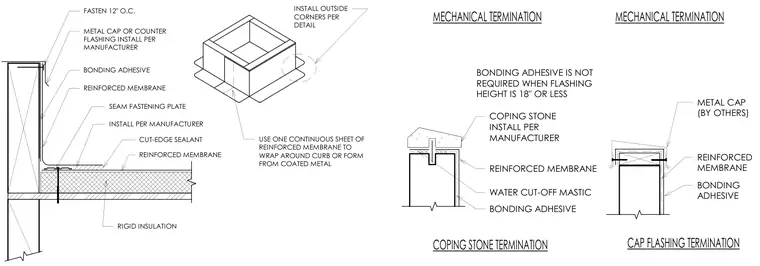

INSTALL OUTSIDE CORNERS PER DETAIL RIGID INSULATION REINFORCED MEMBRANE CUT-EDGE SEALANT INSTALL PER MANUFACTURER SEAM FASTENING PLATE REINFORCED MEMBRANE BONDING ADHESIVE METAL CAP OR COUNTER FLASHING INSTALL PER MANUFACTURER FASTEN 12" O.C. USE ONE CONTINUOUS SHEET OF REINFORCED MEMBRANE TO WRAP AROUND CURB OR FORM FROM COATED METAL MECHANICAL TERMINATION MECHANICAL TERMINATION BONDING ADHESIVE IS NOT REQUIRED WHEN FLASHING HEIGHT IS 18" OR LESS COPING STONE INSTALL PER MANUFACTURER REINFORCED MEMBRANE WATER CUT-OFF MASTIC BONDING ADHESIVE METAL CAP (BY OTHERS) REINFORCED MEMBRANE BONDING ADHESIVE COPING STONE TERMINATION CAP FLASHING TERMINATION
