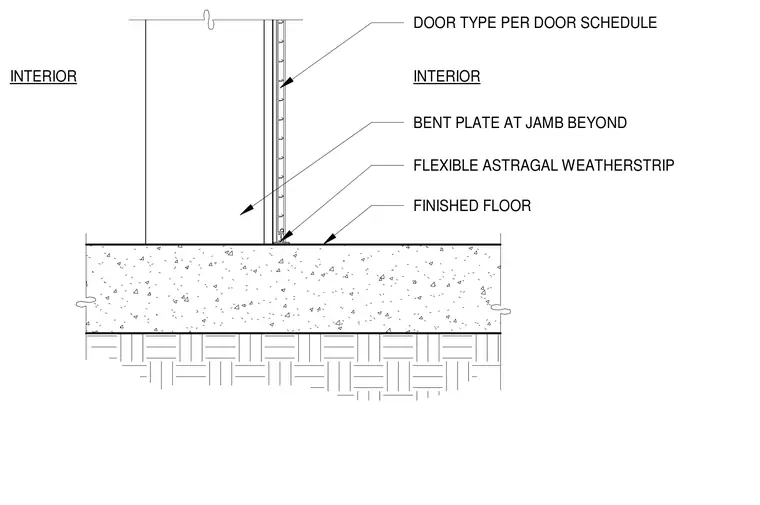

A roll-up door assembly sits at the edge of a finished concrete floor slab over compacted subgrade. A flexible astragal weatherstrip seals the bottom of the door against the floor finish. A bent plate is located at the jamb beyond the door curtain. The specific door type is determined per the door schedule.
INTERIOR INTERIOR DOOR TYPE PER DOOR SCHEDULE FINISHED FLOOR FLEXIBLE ASTRAGAL WEATHERSTRIP BENT PLATE AT JAMB BEYOND
