Architectural · A-7MKP3

Ceiling Transition Detail at Flat Wood to Metal Panel

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Walls Facades / Cladding Ceilings Insulation

About this detail

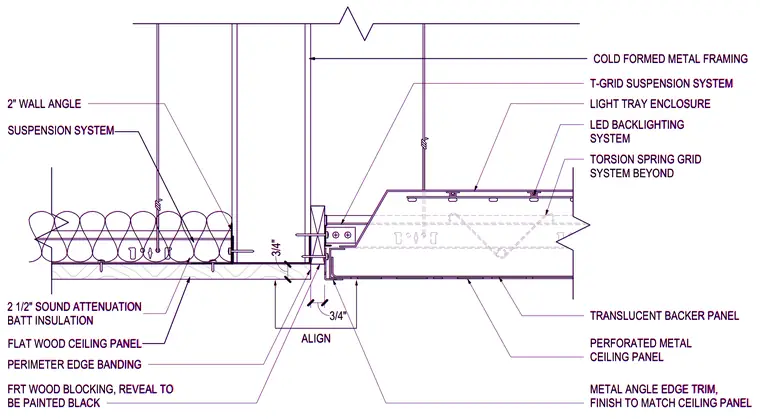

A ceiling transition occurs between a flat wood ceiling panel and a perforated metal ceiling panel integrated with a light tray enclosure. The assembly is supported by cold-formed metal framing and suspended using a T-grid suspension system and a separate suspension system with a two-inch wall angle. Sound attenuation batt insulation measuring two and one-half inches is installed above the flat wood ceiling panel, which features perimeter edge banding and fire-retardant treated wood blocking with a reveal painted black. A metal angle edge trim finished to match the ceiling panel defines the three-quarter-inch transition gap. An LED backlighting system illuminates the translucent backer panel behind the perforated metal ceiling panel, which is supported by a torsion spring grid system beyond.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
