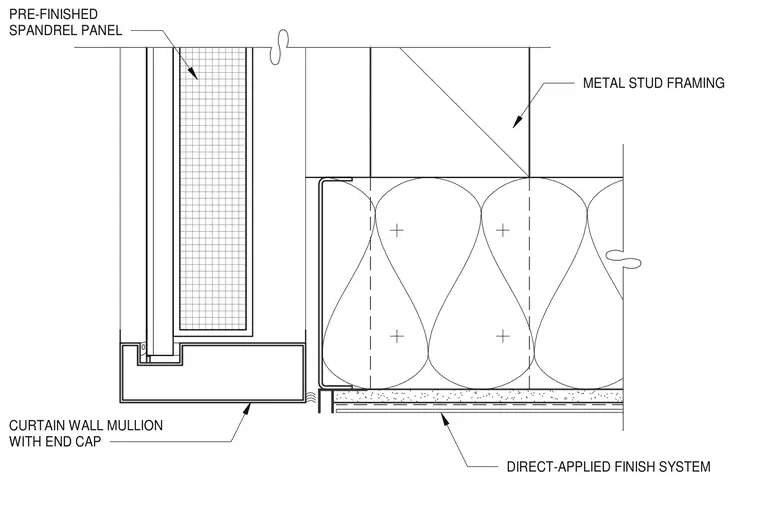

The curtain wall head features a mullion with an end cap terminating adjacent to a pre-finished spandrel panel. The adjacent soffit consists of a direct-applied finish system supported by metal stud framing.
DIRECT-APPLIED FINISH SYSTEM CURTAIN WALL MULLION WITH END CAP PRE-FINISHED SPANDREL PANEL METAL STUD FRAMING
