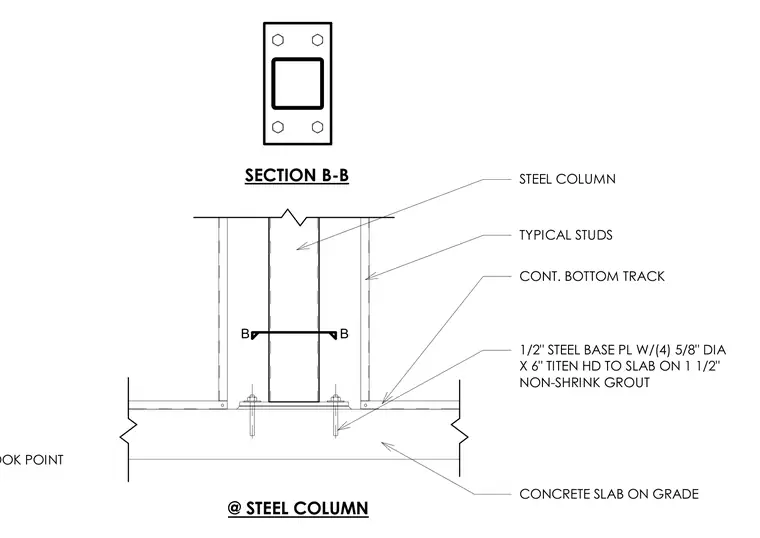

The steel column sits on a one-half-inch steel base plate anchored to a concrete slab on grade with four five-eighths-inch diameter by six-inch Titen HD anchor bolts over one and one-half inches of non-shrink grout. Typical metal studs and a continuous bottom track frame around the column base. An extendable pole with a fall arrest hook point is integrated into the assembly.
EXTENDABLE POLE WITH FALL ARREST HOOK POINT STEEL COLUMN TYPICAL STUDS CONT. BOTTOM TRACK 1/2" STEEL BASE PL W/(4) 5/8" DIA X 6" TITEN HD TO SLAB ON 1 1/2" NON-SHRINK GROUT CONCRETE SLAB ON GRADE B B @ STEEL COLUMN SECTION B-B o 0 0 0 V A 4 f
