Column Base and Sprung Hardwood Gym Floor Transition

Materials

Concrete Reinforced Concrete Steel Timber / Wood Metal (misc.)

Elements

Columns Walls Doors Windows Curtain Walls Floors / Slabs Waterproofing / Flashing Insulation Entrances Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Bolted Connection

About this detail

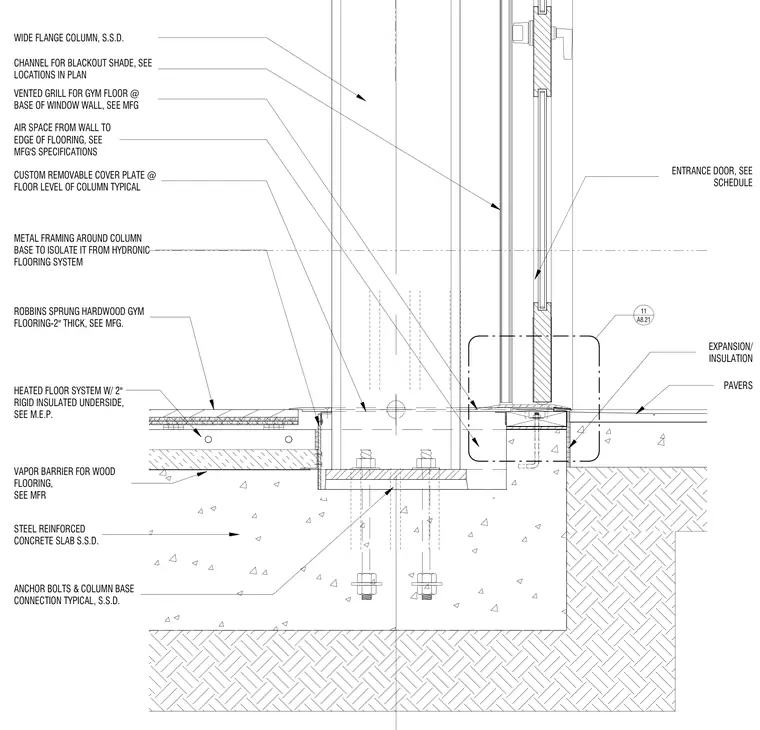

A wide-flange steel column base is anchored with anchor bolts to a steel-reinforced concrete slab. The column base is surrounded by a custom removable cover plate and metal framing to isolate it from the adjacent hydronic heated floor system and two-inch thick Robbins sprung hardwood gym flooring. A vapor barrier sits beneath the wood flooring, and an air space separates the flooring edge from the exterior window wall assembly. At the base of the window wall, a vented grill provides air circulation next to expansion and insulation pavers.
