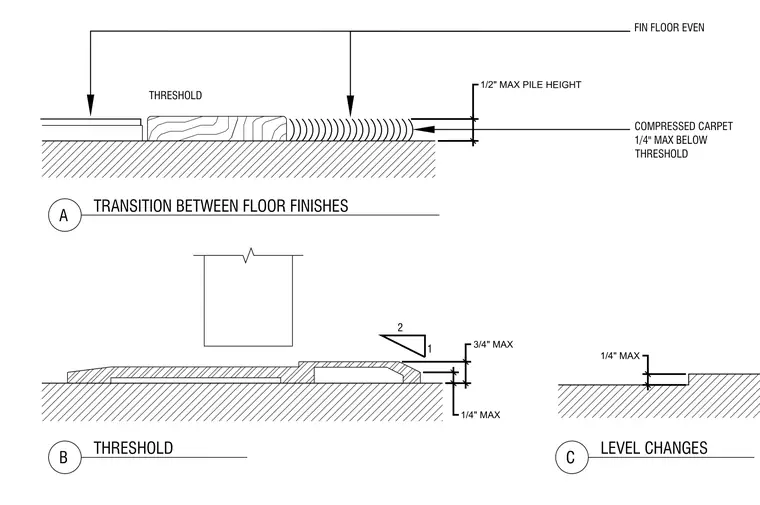

Floor finish transition details showing level changes and thresholds between different flooring materials. The carpet finish transitions at a threshold with a maximum one-half inch pile height and compressed carpet positioned a maximum of one-quarter inch below the threshold. Additional threshold details indicate maximum vertical level changes of three-quarters of an inch and one-quarter of an inch with a two-to-one slope ratio.
1/4" MAX 1/4" MAX 3/4" MAX 2 1 COMPRESSED CARPET 1/4" MAX BELOW THRESHOLD FIN FLOOR EVEN THRESHOLD 1/2" MAX PILE HEIGHT A TRANSITION BETWEEN FLOOR FINISHES B THRESHOLD C LEVEL CHANGES
