Architectural · A-7M4SB

Canopy Roof and Soffic Junction at Exterior Wall

Materials

Steel Timber / Wood Metal (misc.)EIFS / Plaster / Stucco

Elements

Columns Beams Walls Doors Roofs Canopies Ceilings Waterproofing / Flashing

Connections

HSS Connection

About this detail

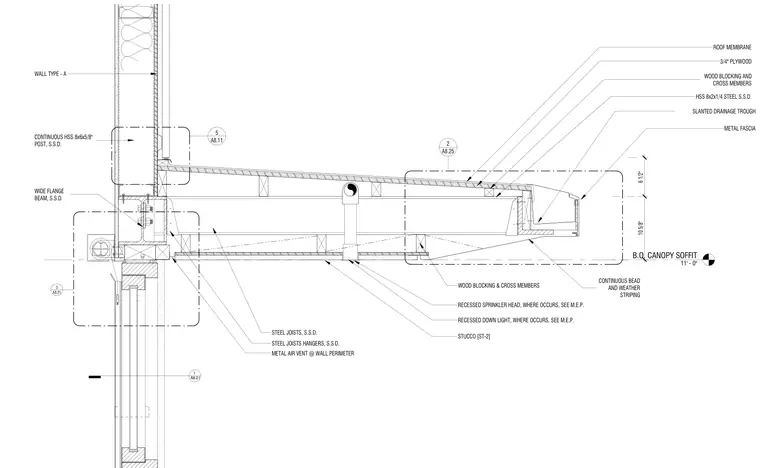

A canopy connection at an exterior wall features a continuous hollow structural section post measuring eight by six by five-eighths inches supported by a wide flange beam. The roof assembly consists of a roof membrane over three-quarter-inch plywood, supported by wood blocking and cross members along with hollow structural section members measuring eight by two by one-quarter inch. A slanted drainage trough and metal fascia terminate the canopy edge, while a stucco finish is applied over Wall Type A. Additional integration includes recessed sprinkler heads and downlights coordinated per mechanical, electrical, and plumbing drawings, with steel joists and hangers supporting the soffit.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
