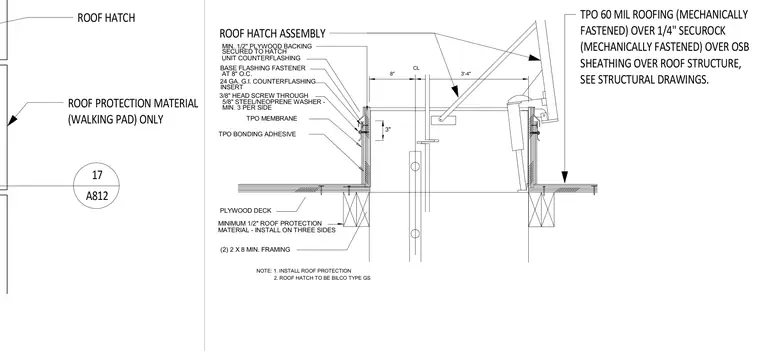

A roof hatch curb installation is supported by two nominal two-by-eight wood framing members over a plywood deck and roof structure. The roof assembly consists of sixty-mil TPO roofing mechanically fastened over a quarter-inch Securock gypsum board and OSB sheathing. A minimum half-inch plywood backing is secured to the hatch with three-eighths-inch head screws through fifty-eight-inch steel and neoprene washers with at least three fasteners per side. A twenty-four-gauge galvanized iron counterflashing and base flashing are integrated with TPO membrane adhered via TPO bonding adhesive. Minimum half-inch roof protection material walking pads are installed on three sides, and the hatch unit is specified as a Bilco type GS.
MIN. 1/2" PLYWOOD BACKING SECURED TO HATCH AT 8" O.C. 24 GA. G.I. COUNTERFLASHING UNIT COUNTERFLASHING BASE FLASHING FASTENER 8" INSERT 3/8" HEAD SCREW THROUGH MIN. 3 PER SIDE 5/8" STEEL/NEOPRENE WASHER - TPO BONDING ADHESIVE TPO MEMBRANE 3" PLYWOOD DECK MATERIAL - INSTALL ON THREE SIDES MINIMUM 1/2" ROOF PROTECTION NOTE: 1. INSTALL ROOF PROTECTION 2. ROOF HATCH TO BE BILCO TYPE GS (2) 2 X 8 MIN. FRAMING CL 3'-4" 17 A812 ROOF HATCH ROOF PROTECTION MATERIAL (WALKING PAD) ONLY TPO 60 MIL ROOFING (MECHANICALLY FASTENED) OVER 1/4" SECUROCK (MECHANICALLY FASTENED) OVER OSB SHEATHING OVER ROOF STRUCTURE, SEE STRUCTURAL DRAWINGS. ROOF HATCH ASSEMBLY
