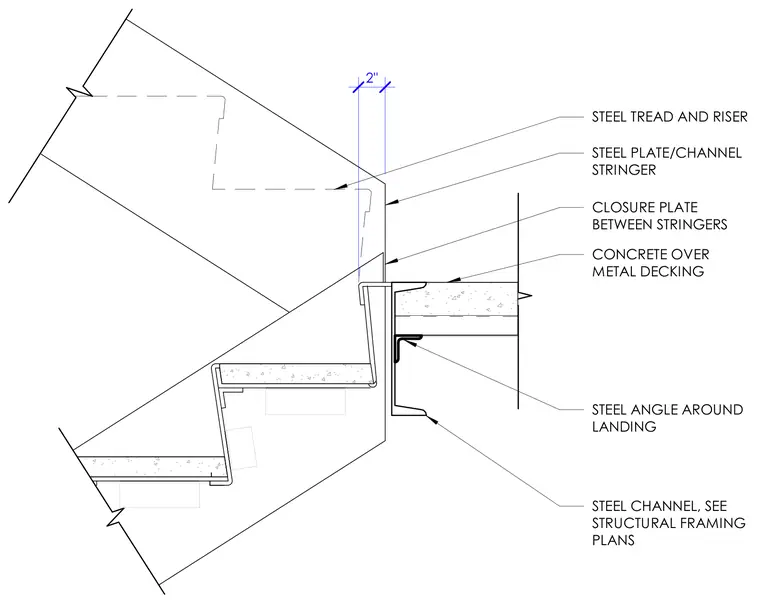

Steel stair treads and risers are supported by steel plate or channel stringers terminating at a concrete landing. A closure plate spans between the stringers to enclose the stair edge. The landing consists of concrete placed over metal decking, supported by a steel angle and a perimeter steel channel sized per structural framing plans. A two-inch clearance is maintained between the stair assembly and the landing edge.
CONCRETE OVER METAL DECKING STEEL ANGLE AROUND LANDING STEEL CHANNEL, SEE STRUCTURAL FRAMING PLANS STEEL TREAD AND RISER STEEL PLATE/CHANNEL STRINGER CLOSURE PLATE BETWEEN STRINGERS 2"
