Architectural · A-7KSEA

Eave - East @ Studios

Materials

Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall Membrane / Roofing

Elements

Beams Walls Roofs Decks Insulation Roof / Floor Openings

About this detail

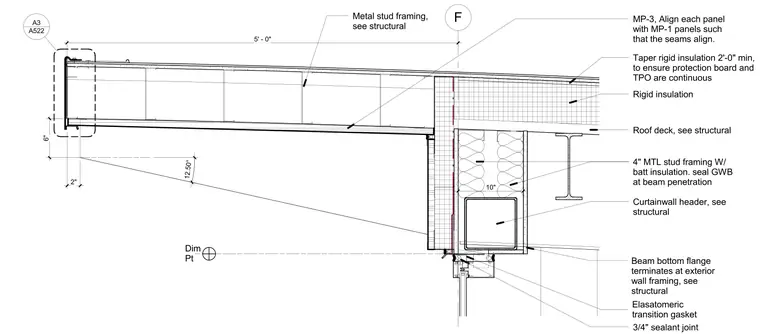

The assembly features a roof deck and structural steel beam with the bottom flange terminating at the exterior wall framing. Four-inch metal stud framing with batt insulation is integrated with a curtainwall header, and gypsum wallboard is sealed at the beam penetration. The roof build-up incorporates rigid insulation and tapered rigid insulation over a 5'-0" span, transitioning with an elastomeric gasket and a three-quarter-inch sealant joint. MP-3 metal panels align with MP-1 panels to ensure continuous seams, and an overhang extends past the exterior wall at a 12.50-degree angle.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
