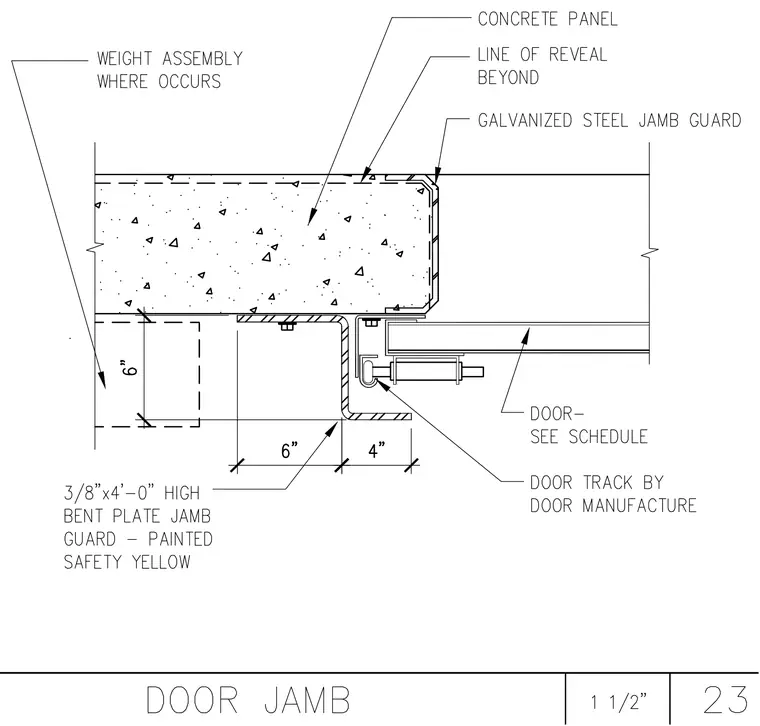

A 3/8-inch by 4-foot-zero-inch high bent plate jamb guard, painted safety yellow, is anchored adjacent to the concrete panel opening. A galvanized steel jamb guard wraps the concrete panel corner. The door track, provided by the door manufacturer, is mounted near the jamb. A weight assembly is shown where occurs in the adjacent construction.
