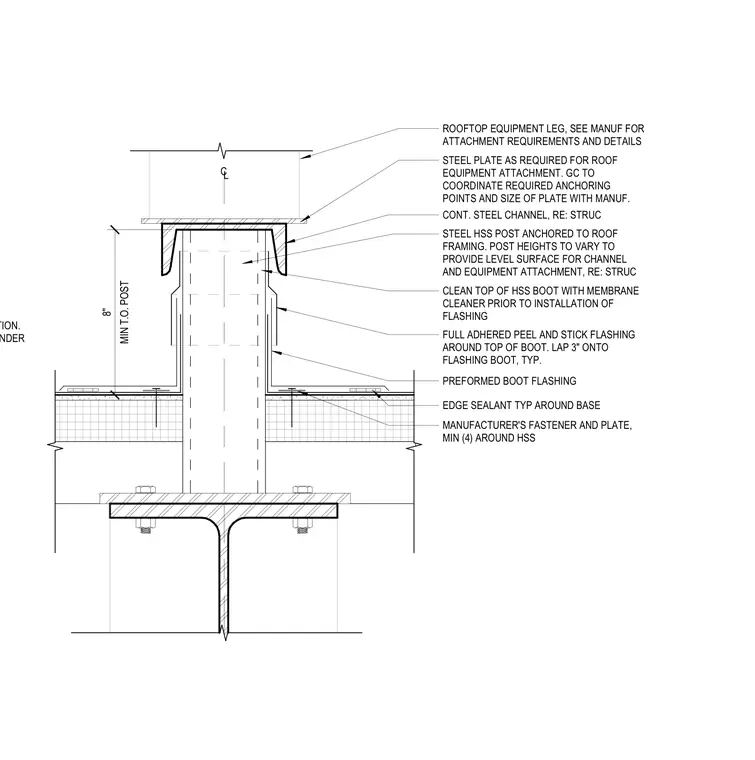

A hollow structural section post is anchored to the roof framing below, with post heights varying to provide a level surface for the continuous steel channel and equipment attachment plate above. The top of the hollow structural section boot is cleaned with membrane cleaner before the installation of a preformed boot flashing. This flashing is secured with a minimum of four manufacturer-specified fasteners and plates around the hollow structural section edge, with full-adhered peel-and-stick flashing lapped three inches onto the boot. Edge sealant is applied typically around the base of the flashing, which sits atop the roof membrane and rigid insulation. The roof membrane and air and water barrier are lapped under the flashing assembly.
Text on the drawing
ROOFTOP EQUIPMENT LEG, SEE MANUF FOR ATTACHMENT REQUIREMENTS AND DETAILS C L STEEL PLATE AS REQUIRED FOR ROOF EQUIPMENT ATTACHMENT. GC TO COORDINATE REQUIRED ANCHORING POINTS AND SIZE OF PLATE WITH MANUF. CONT. STEEL CHANNEL, RE: STRUC STEEL HSS POST ANCHORED TO ROOF FRAMING. POST HEIGHTS TO VARY TO PROVIDE LEVEL SURFACE FOR CHANNEL AND EQUIPMENT ATTACHMENT, RE: STRUC CLEAN TOP OF HSS BOOT WITH MEMBRANE CLEANER PRIOR TO INSTALLATION OF FLASHING FULL ADHERED PEEL AND STICK FLASHING AROUND TOP OF BOOT. LAP 3" ONTO FLASHING BOOT, TYP. PREFORMED BOOT FLASHING MANUFACTURER'S FASTENER AND PLATE, MIN (4) AROUND HSS EDGE SEALANT TYP AROUND BASE MIN T.O. POST 8" ROOF MEMBRANE ADHERED TO RIGID INSULATION. LAP AIR & WATER BARRIER AND MEMBRANE UNDER
