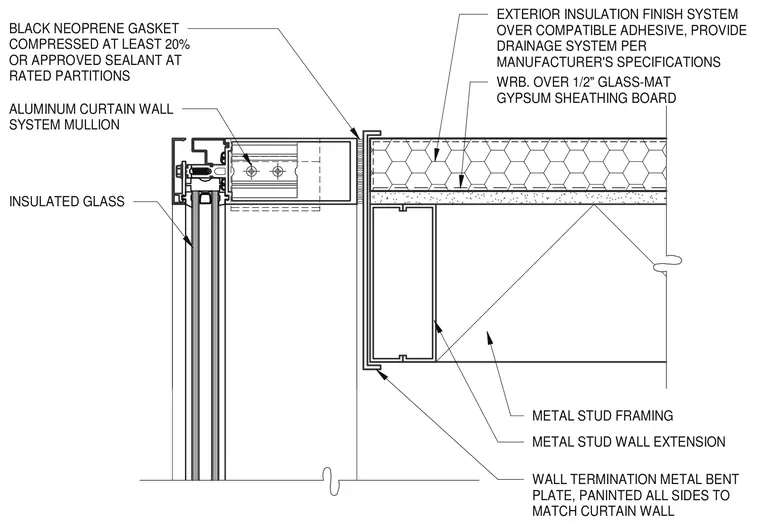

An aluminum curtain wall system mullion transitions to a metal stud framing wall assembly featuring one-half-inch glass-mat gypsum sheathing board and a weather-resistive barrier. The exterior is clad with an exterior insulation finish system over a compatible adhesive, with a drainage system installed per the manufacturer specifications. A wall termination metal bent plate, painted on all sides to match the curtain wall, bridges the junction between the framing extension and the glazing system. A black neoprene gasket, compressed at least twenty percent, or an approved sealant is applied at rated partitions.
METAL STUD FRAMING WRB. OVER 1/2" GLASS-MAT GYPSUM SHEATHING BOARD WALL TERMINATION METAL BENT PLATE, PANINTED ALL SIDES TO MATCH CURTAIN WALL INSULATED GLASS BLACK NEOPRENE GASKET COMPRESSED AT LEAST 20% OR APPROVED SEALANT AT RATED PARTITIONS ALUMINUM CURTAIN WALL SYSTEM MULLION METAL STUD WALL EXTENSION EXTERIOR INSULATION FINISH SYSTEM OVER COMPATIBLE ADHESIVE, PROVIDE DRAINAGE SYSTEM PER MANUFACTURER'S SPECIFICATIONS
