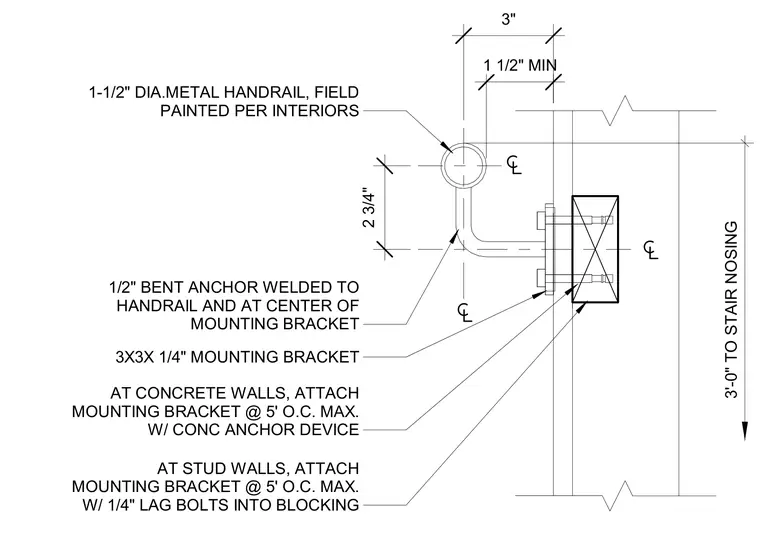

A one-and-a-half-inch diameter metal handrail is field painted per interiors and set three feet to the stair nosing. A half-inch bent anchor is welded to the handrail and positioned at the center of a three-by-three-by-one-quarter-inch mounting bracket. At concrete walls, the mounting bracket is attached at five feet on-center maximum with a concrete anchor device. At stud walls, the mounting bracket is attached at five feet on-center maximum with quarter-inch lag bolts into blocking.
3'-0" TO STAIR NOSING 1-1/2" DIA.METAL HANDRAIL, FIELD PAINTED PER INTERIORS 1 1/2" MIN 2 3/4" 3" 3X3X 1/4" MOUNTING BRACKET AT CONCRETE WALLS, ATTACH MOUNTING BRACKET @ 5' O.C. MAX. W/ CONC ANCHOR DEVICE AT STUD WALLS, ATTACH MOUNTING BRACKET @ 5' O.C. MAX. W/ 1/4" LAG BOLTS INTO BLOCKING 1/2" BENT ANCHOR WELDED TO HANDRAIL AND AT CENTER OF MOUNTING BRACKET
