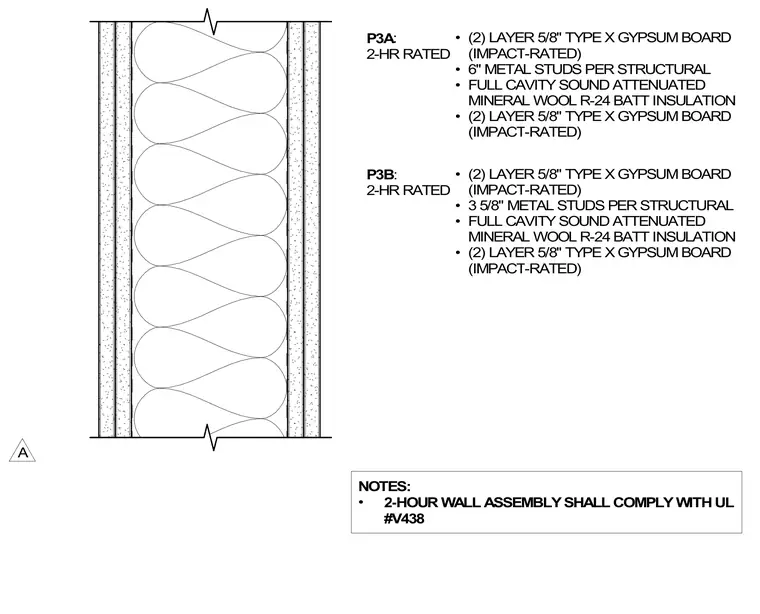

This two-hour fire-rated partition assembly features cold-formed metal framing faced with dual layers of five-eighths-inch Type X impact-rated gypsum board on both sides. The wall cavity contains full-depth sound-attenuated mineral wool batt insulation. Framing configurations utilize either six-inch or three-and-five-eighths-inch metal studs sized per structural requirements. The complete assembly complies with Underwriters Laboratories design number UL V438.
• (2) LAYER 5/8" TYPE X GYPSUM BOARD (IMPACT-RATED) • 6" METAL STUDS PER STRUCTURAL • FULL CAVITY SOUND ATTENUATED MINERAL WOOL R-24 BATT INSULATION • (2) LAYER 5/8" TYPE X GYPSUM BOARD (IMPACT-RATED) NOTES: • 2-HOUR WALL ASSEMBLY SHALL COMPLY WITH UL #V438 P3A : 2-HR RATED • (2) LAYER 5/8" TYPE X GYPSUM BOARD (IMPACT-RATED) • 3 5/8" METAL STUDS PER STRUCTURAL • FULL CAVITY SOUND ATTENUATED MINERAL WOOL R-24 BATT INSULATION • (2) LAYER 5/8" TYPE X GYPSUM BOARD (IMPACT-RATED) P3B : 2-HR RATED A
