Architectural · A-7JH7H

Roof Parapet Coping and Fall Protection Pipe Penetration Details

Materials

Concrete Steel Stainless Steel Timber / Wood Glass / Glazing Metal (misc.)Membrane / Roofing

Elements

Walls Roofs Parapets Floors / Slabs Decks Waterproofing / Flashing Insulation Drainage Site / Paving Roof / Floor Openings

Connections

Welded Connection Deck Attachment

About this detail

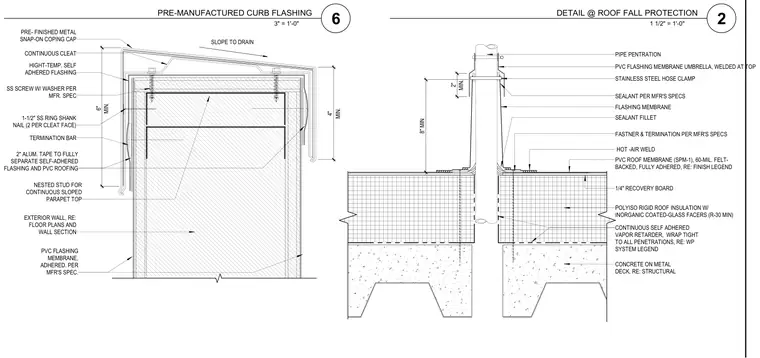

A pre-manufactured metal snap-on coping cap is installed over a nested stud for a continuous sloped parapet top. High-temperature self-adhered flashing and a termination bar are secured with stainless steel screws and washers, and two 1-1/2 inch stainless steel ring shank nails secure each face of the continuous cleat. A 2-inch aluminum tape separates the self-adhered flashing from the PVC roofing membrane, and an adhered PVC flashing membrane wraps the exterior wall. A pipe penetration passes through an 8-inch minimum concrete on metal deck assembly with polyiso rigid roof insulation, a 1/4-inch recovery board, and a 60-mil felt-backed fully adhered PVC roof membrane. A continuous self-adhered vapor retarder wraps tight to all penetrations, and a pre-manufactured curb flashing or PVC umbrella is welded at the top with a stainless steel hose clamp and hot-air welded flashing membrane.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
