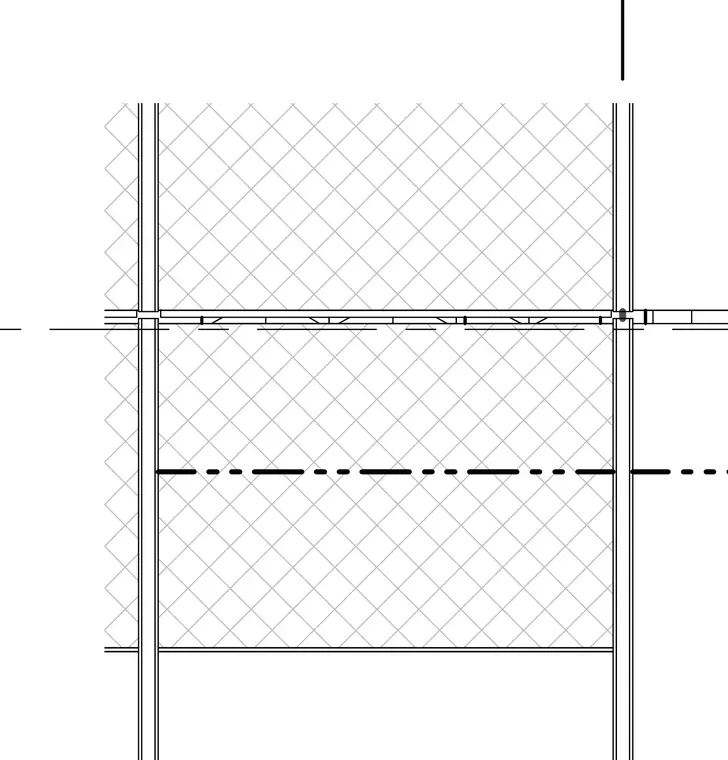

Vertical curtain wall mullions intersect with horizontal transom framing members. A grid pattern indicates glazed or opaque infill panels fitted within the aluminum framing extrusions. Continuous line work denotes the alignment and joinery between adjacent framing bays.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
