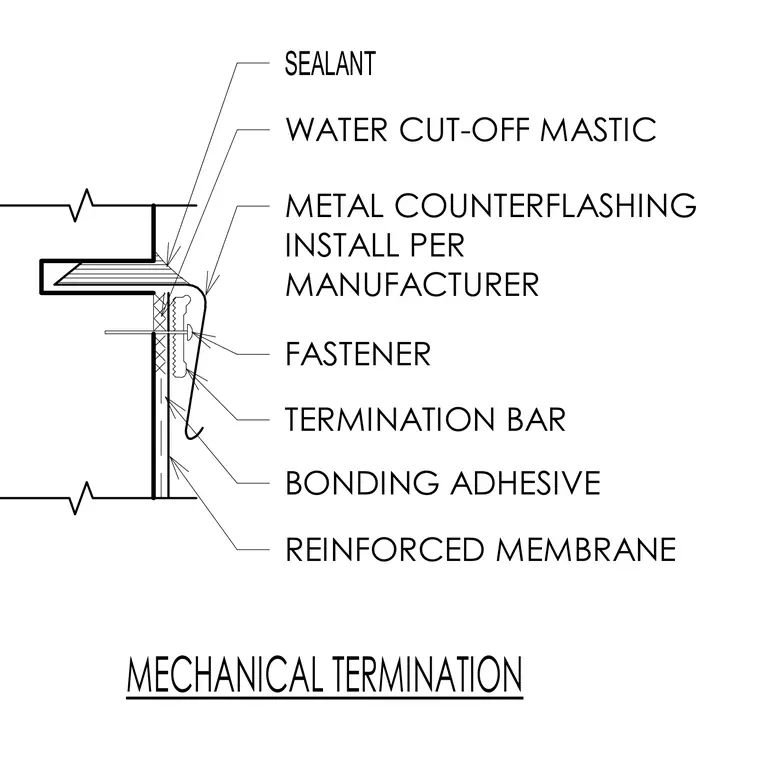

A reinforced membrane is adhered to the substrate using bonding adhesive and secured at the edge with a metal termination bar and mechanical fasteners. Water cut-off mastic is applied beneath the termination bar, and sealant seals the joint above. Metal counterflashing is installed over the termination to shed water per the manufacturer instructions.
SEALANT WATER CUT-OFF MASTIC METAL COUNTERFLASHING INSTALL PER MANUFACTURER FASTENER TERMINATION BAR BONDING ADHESIVE REINFORCED MEMBRANE MECHANICAL TERMINATION
