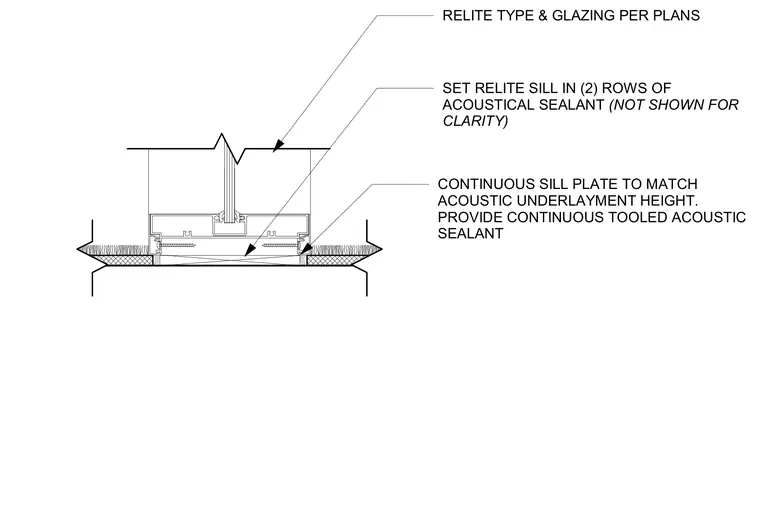

An aluminum relite sill sits on a continuous sill plate matched in height to the surrounding acoustic underlayment. The sill is bedded in two rows of acoustical sealant and secured with fasteners. Continuous tooled acoustic sealant is applied at the perimeter joints of the assembly. Glazing and relite type are coordinated per architectural plans.
RELITE TYPE & GLAZING PER PLANS CONTINUOUS SILL PLATE TO MATCH ACOUSTIC UNDERLAYMENT HEIGHT. PROVIDE CONTINUOUS TOOLED ACOUSTIC SEALANT SET RELITE SILL IN (2) ROWS OF ACOUSTICAL SEALANT (NOT SHOWN FOR CLARITY)
