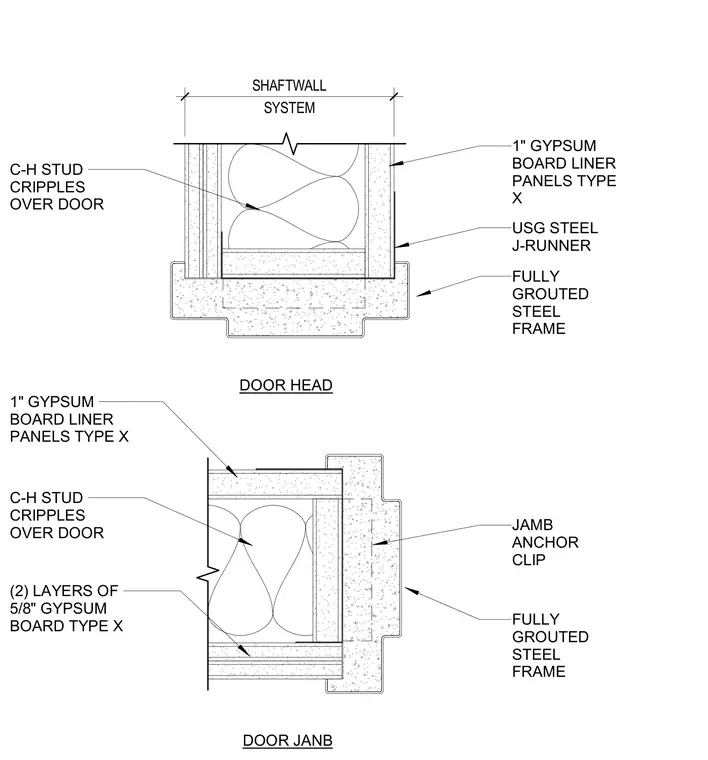

The door head detail features a fully grouted steel frame secured to a USG steel J-runner, flanked by one-inch gypsum board liner panels type X and C-H stud cripples over the door. The door jamb detail connects the fully grouted steel frame to C-H stud cripples over the door using a jamb anchor clip and two layers of five-eighths-inch gypsum board type X.
USG STEEL J-RUNNER FULLY GROUTED STEEL FRAME (2) LAYERS OF 5/8" GYPSUM BOARD TYPE X 1" GYPSUM BOARD LINER PANELS TYPE X SYSTEM SHAFTWALL DOOR HEAD 1" GYPSUM BOARD LINER PANELS TYPE X C-H STUD CRIPPLES OVER DOOR C-H STUD CRIPPLES OVER DOOR FULLY GROUTED STEEL FRAME JAMB ANCHOR CLIP DOOR JANB
