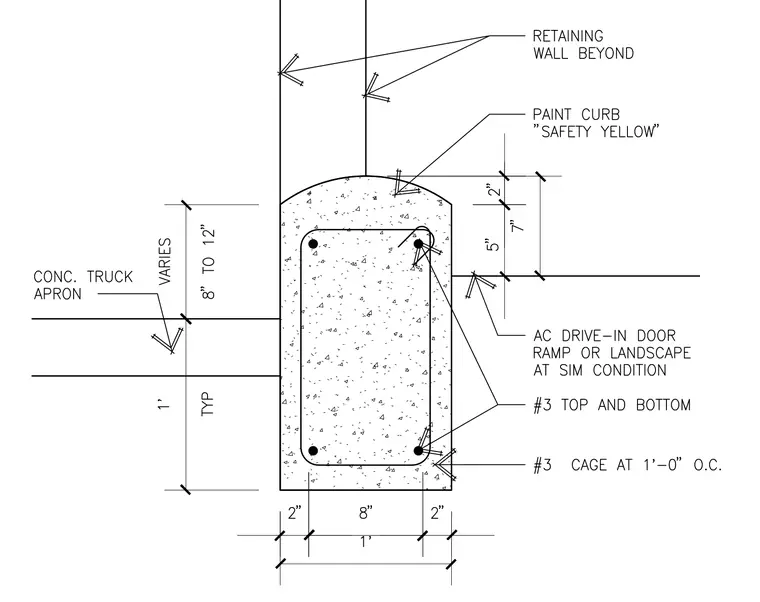

A reinforced concrete curb measuring one foot wide with a variable height of eight to twelve inches is positioned adjacent to a concrete truck apron. The curb features a rounded top surface designated to be painted safety yellow. Internal reinforcement consists of number three top and bottom bars within a number three cage spaced at one foot zero inches on center. The concrete truck apron meets the side of the curb at a typical height of one foot below the curb base. A retaining wall extends upward beyond the curb, and adjacent conditions include an air conditioning drive-in door ramp or landscaping.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
