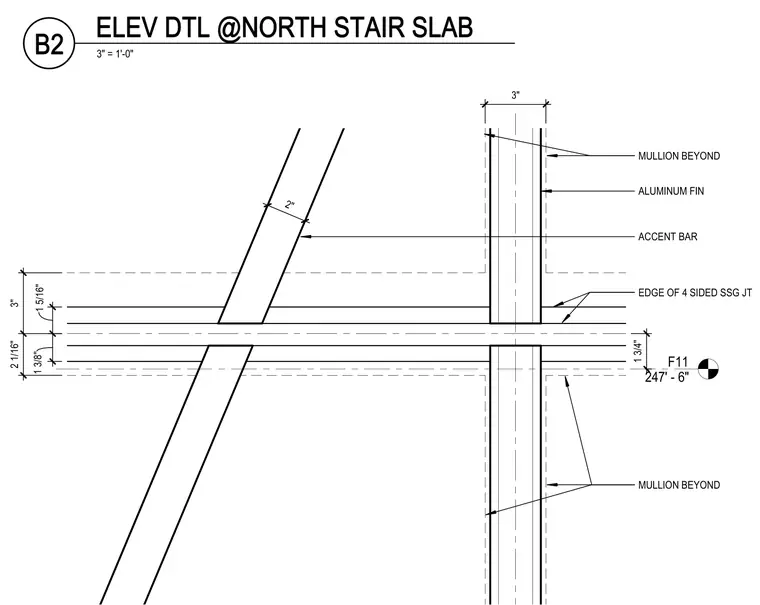

An aluminum fin accent bar measuring two inches wide intersects with a vertical mullion positioned beyond the slab edge. A four-sided structural silicone glazed joint spans horizontally across the assembly. Precise vertical dimensions of 1 3/8 inches, 1 5/16 inches, 2 1/16 inches, and 1 3/4 inches locate the joint and accent components relative to elevation F11 at 247'-6".
F11 247' - 6" 1 3 / 4 " ALUMINUM FIN ACCENT BAR 2 " 1 3 / 8 " 1 5 / 1 6 " 2 1 / 1 6 " 3 " 3 " MULLION BEYOND MULLION BEYOND EDGE OF 4 SIDED SSG JT 3" = 1'-0" B2 ELEV DTL @NORTH STAIR SLAB
