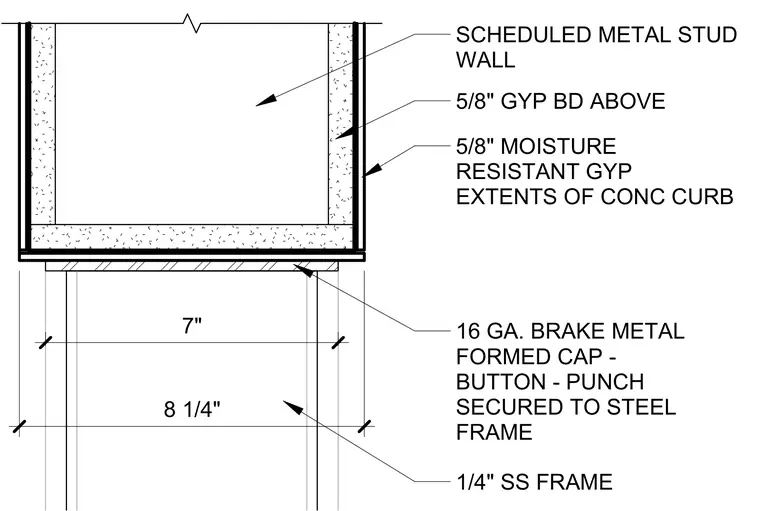

A scheduled metal stud wall is framed with cold-formed steel studs and faced with five-eighths inch gypsum board above and moisture-resistant gypsum board extending to the concrete curb. A quarter-inch stainless steel frame supports the assembly. A sixteen gauge brake metal formed cap is button-punch secured to the steel frame.
8 1/4" 7" 5/8" MOISTURE RESISTANT GYP EXTENTS OF CONC CURB 5/8" GYP BD ABOVE 1/4" SS FRAME 16 GA. BRAKE METAL FORMED CAP - BUTTON - PUNCH SECURED TO STEEL FRAME SCHEDULED METAL STUD WALL
