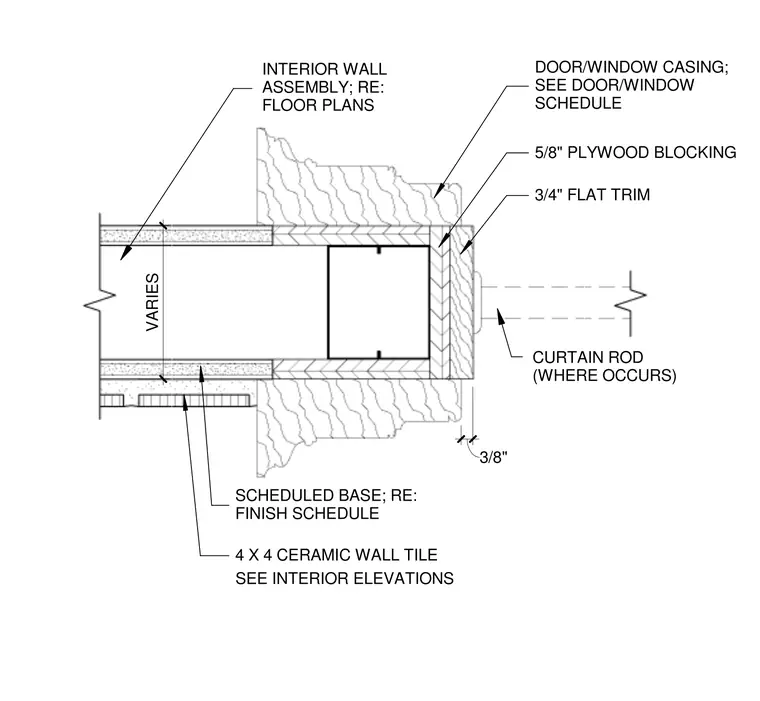

This interior wall assembly connects to a door or window casing detailed per the door and window schedule. A three-quarter-inch flat trim overlies five-eighths-inch plywood blocking fastened to the framing. The wall thickness varies and includes a scheduled base according to the finish schedule alongside four-by-four ceramic wall tile referenced on the interior elevations. A curtain rod is provided where indicated.
DOOR/WINDOW CASING; SEE DOOR/WINDOW SCHEDULE 3/4" FLAT TRIM 5/8" PLYWOOD BLOCKING 3/8" VARIES INTERIOR WALL ASSEMBLY; RE: FLOOR PLANS 4 X 4 CERAMIC WALL TILE SEE INTERIOR ELEVATIONS SCHEDULED BASE; RE: FINISH SCHEDULE CURTAIN ROD (WHERE OCCURS)
