Architectural · A-7H4P7

Non-Structural Trees - Bracket 3

Scale: 1/2" = 1'-0"
Units: imperial
Sheet: A-433
Discipline: Architectural

Elements

Connections / Plates

Text on the drawing

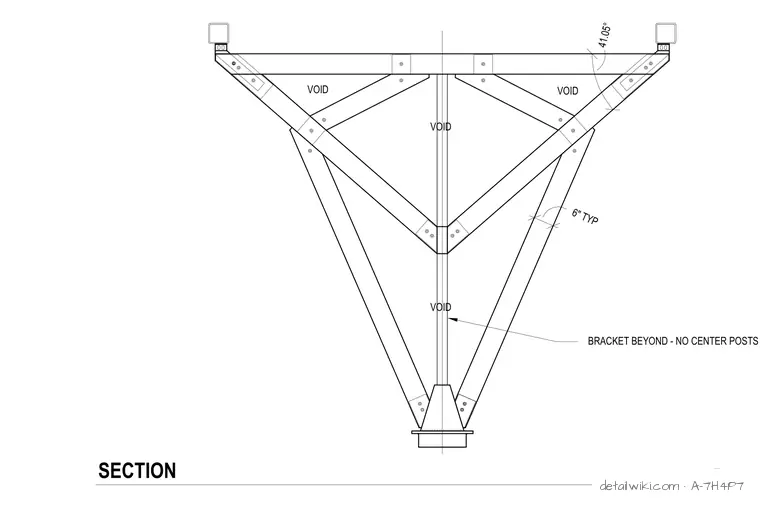

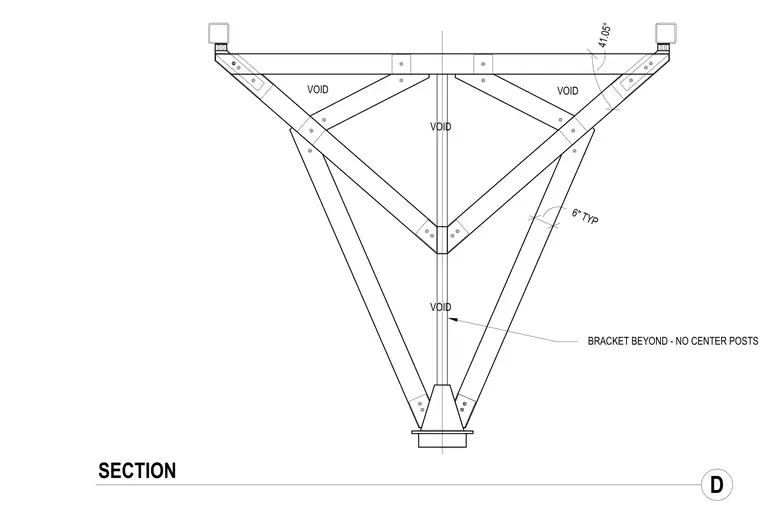

SECTION D 6" TYP VOID VOID VOID 41.05° BRACKET BEYOND - NO CENTER POSTS VOID
