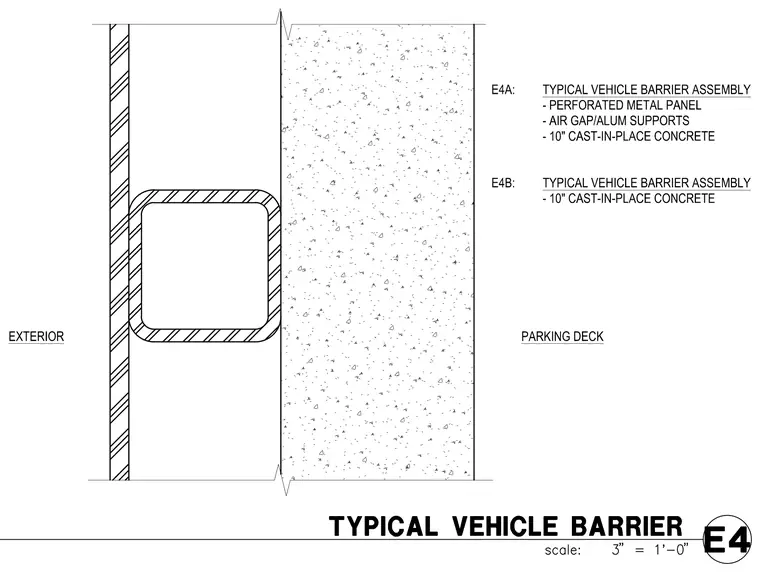

The assembly features a ten-inch cast-in-place concrete exterior parking deck wall anchored with a horizontal hollow structural steel tube member acting as a vehicle barrier. An exterior perforated metal panel is mounted onto aluminum supports with an air gap separating it from the concrete structure. Two alternative configurations are provided, one with the perforated metal panel and aluminum supports and one with the concrete wall exposed.
E4A: TYPICAL VEHICLE BARRIER ASSEMBLY - PERFORATED METAL PANEL - AIR GAP/ALUM SUPPORTS - 10" CAST-IN-PLACE CONCRETE E4B: TYPICAL VEHICLE BARRIER ASSEMBLY - 10" CAST-IN-PLACE CONCRETE EXTERIOR PARKING DECK
