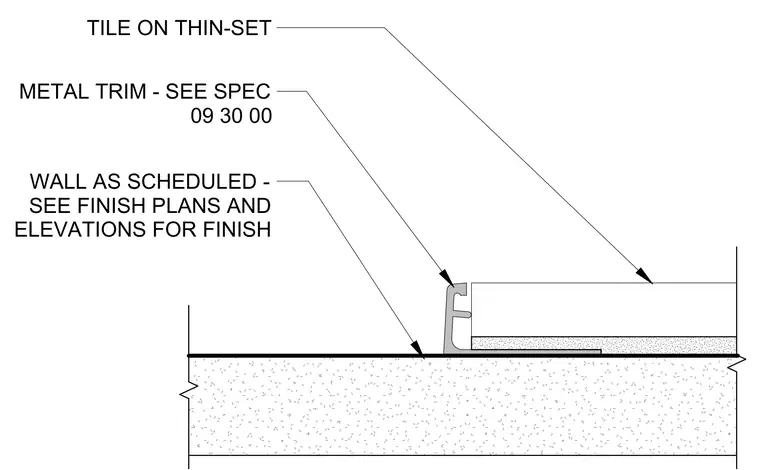

Tile is set in thin-set adhesive directly over a wall assembly scheduled elsewhere in the drawings. A metal edge trim profile is anchored beneath the tile bed to protect and finish the tile edge per specification section 09 30 00. Finish plans and elevations govern overall wall finish selections.
TILE ON THIN-SET METAL TRIM - SEE SPEC 09 30 00 WALL AS SCHEDULED - SEE FINISH PLANS AND ELEVATIONS FOR FINISH
